Convair B-36

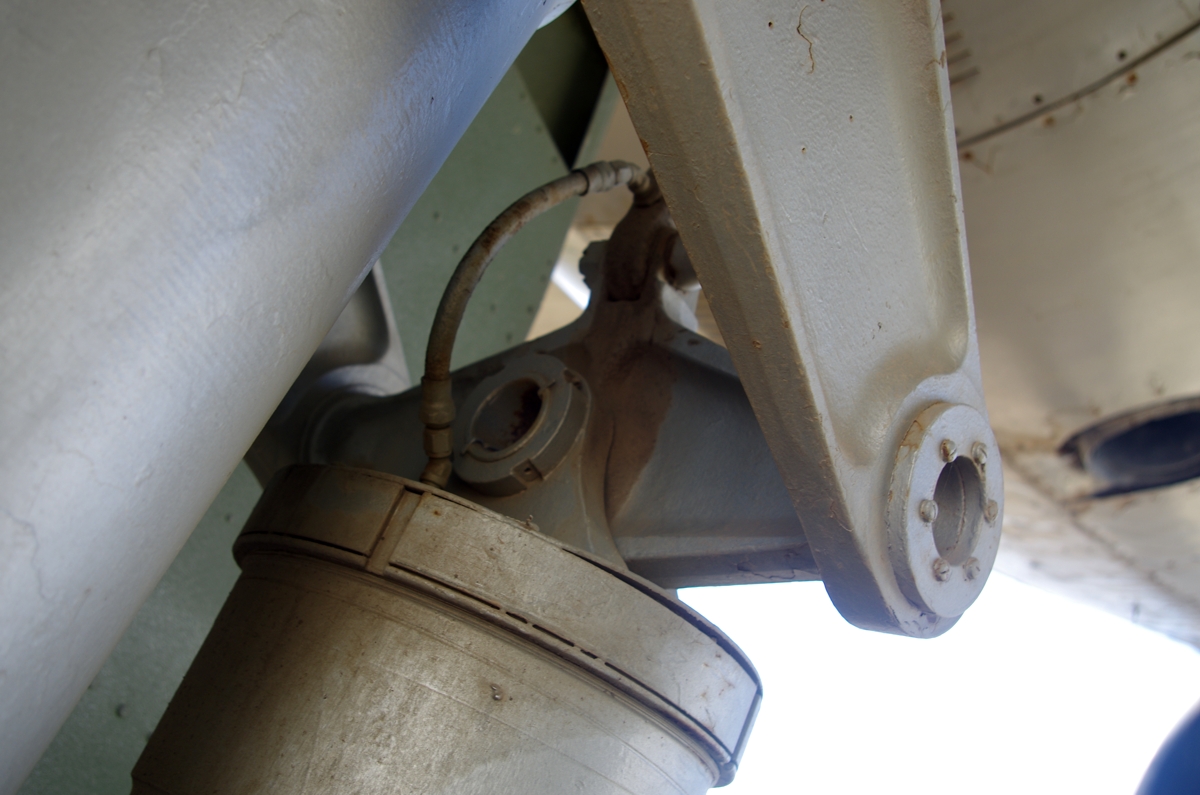

The upper end of the oleo strut on the aft side of the strut and the link that attaches it to the equalizer arms.  This is the end of the strut that has the piston.  The piston is not visible,
on an airplane in flight worthy status the piston would be visible and the equalizer links would be near horizontal with an average weight.  See the black and
white picture with the man standing next to the strut, the piston is visible there.  This cylinder absorbs the landing shocks on both trunnions.
