Convair B-36

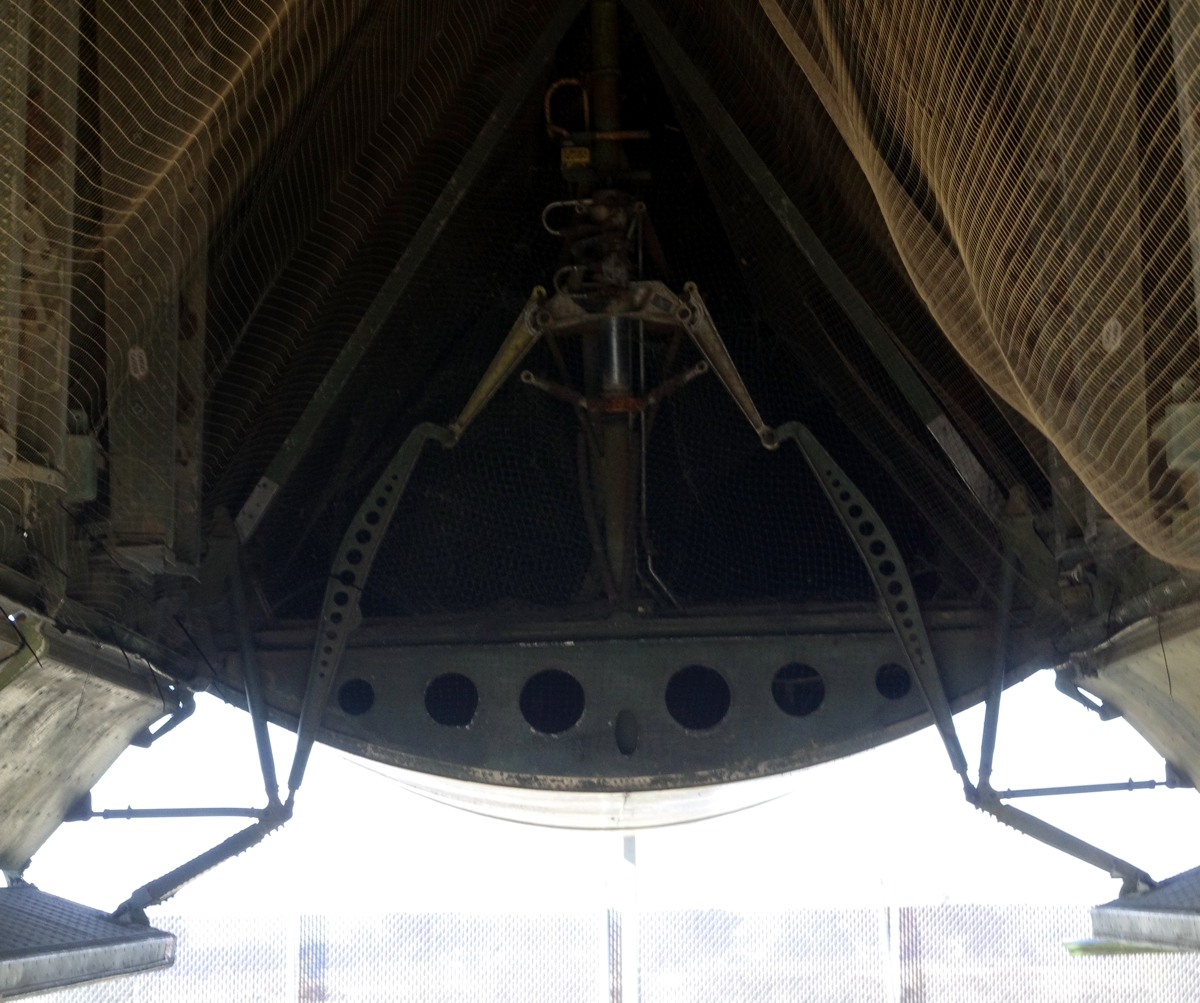

The rear of the bomb bay.  The retraction linkage is disconnected, and I think the way it operates is the two small links on the bottom of the cylinder assembly
would be vertical and attach to the inside of the top of the upper links, the bolt holes are visible at the top of the upper arms.  The cylinder is extended as
it would be if the doors were closed.  The same arrangement is in the front of the bomb bay.
