Henry Struck's 1937 Benny Boxcar
Scaled to 108 inch span
Page 17
All the joints are given a going over with Titebond III, including the capstrips.

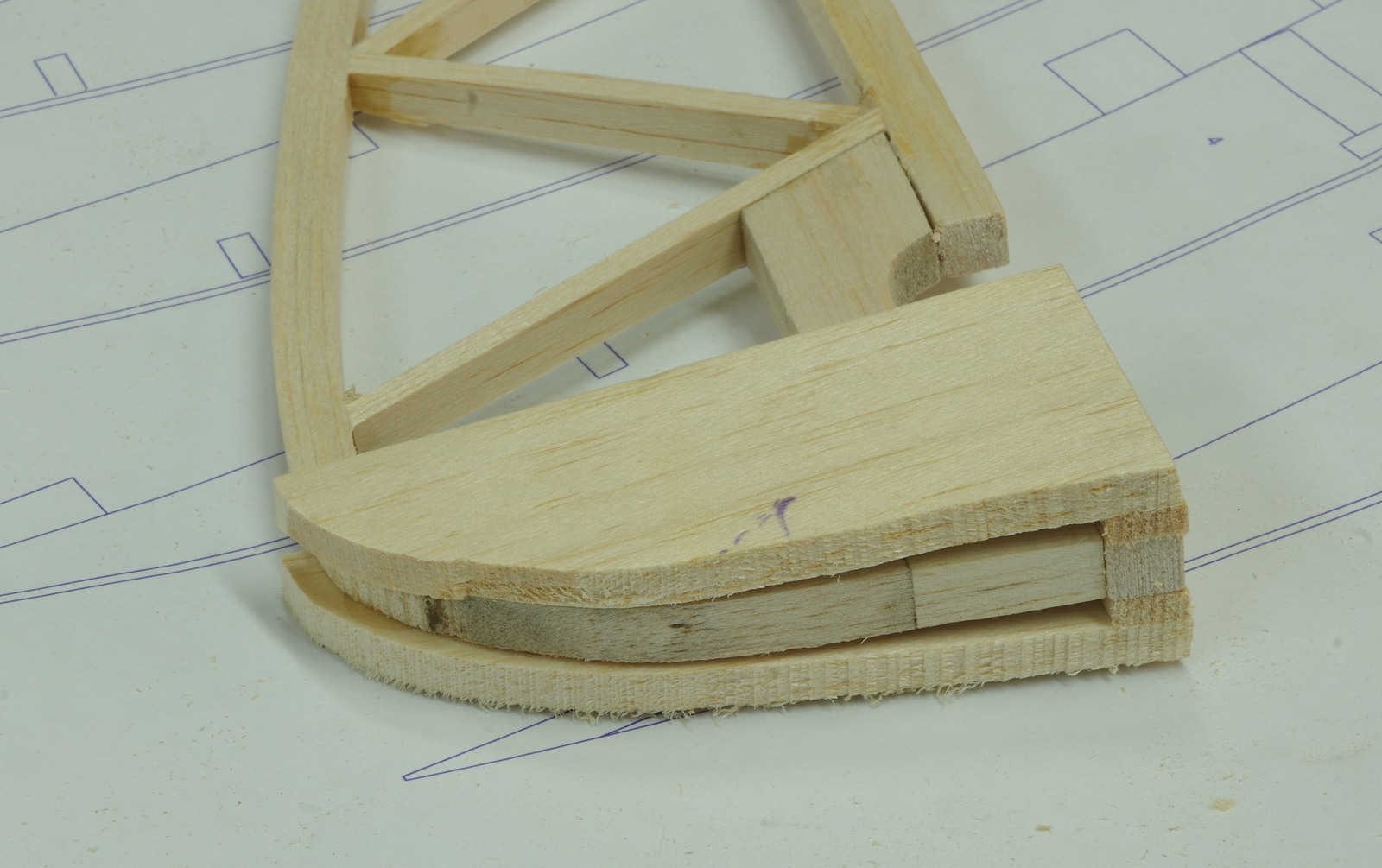

Balsa is added to shape the lower section of the rudder to fair to the aft fuselage.
The top of the rudder has been clipped and a companion piece of balsa was added to the fin. This will receive a 1/16 music wire pin to become the upper pivot point for the rudder.
I did not include this detail on the plans because it seems like everyone has their own favorite way of hingeing control surfaces.
Tools used to shape the leading edge of the elevator. The shaping should be done so that there is a constant radius about the center of the carbon fiber center joiner.
After aligning the elevator with the stabilizer, at the location of the outer hinges a T-pin was pushed through at the same height as the carbon fiber center joiners. The elevator was
separated from the stabilizer and a guide hole was drilled through both components from the front of the elevator and the back of the stabilizer to get exact alignment.
