The ribs and spars have been glued together and the leading edge is being installed. I have changed the plan to use a laminated leading edge as the
single thickness is too stiff for the curve and draws the tips forward. More soft wood needed here.
Golden
Era Model Service
High
Quality Plan Sets for Radio Control Aircraft
36 inch 1940 Cleveland Playboy
Senior
Joe Elgin 80 inch design

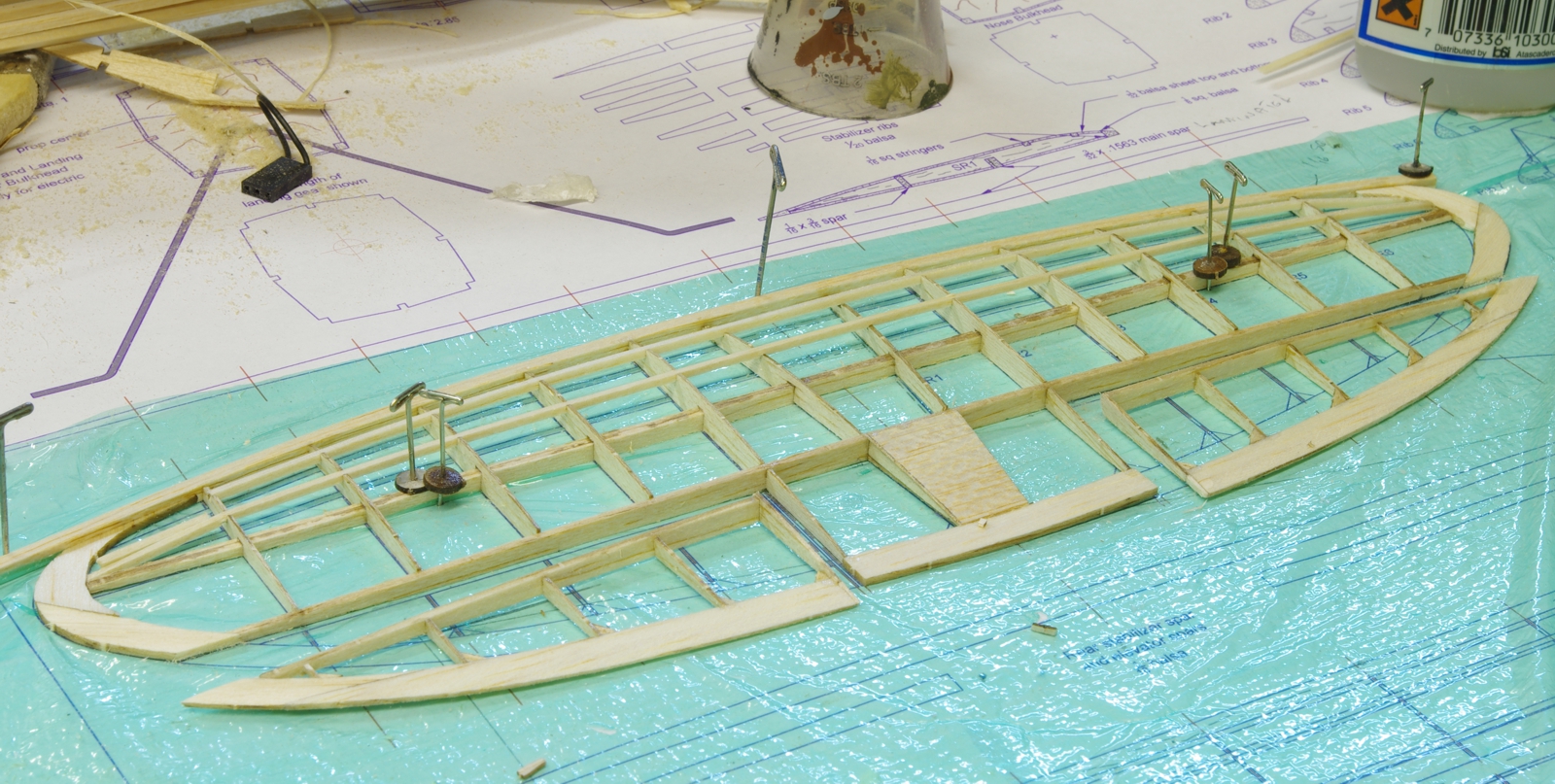

The
ribs and spars have been glued together and the leading edge is being
installed. I have changed the plan to use a laminated leading
edge as the
single thickness is too stiff for the curve and draws the tips forward. More soft wood needed here.

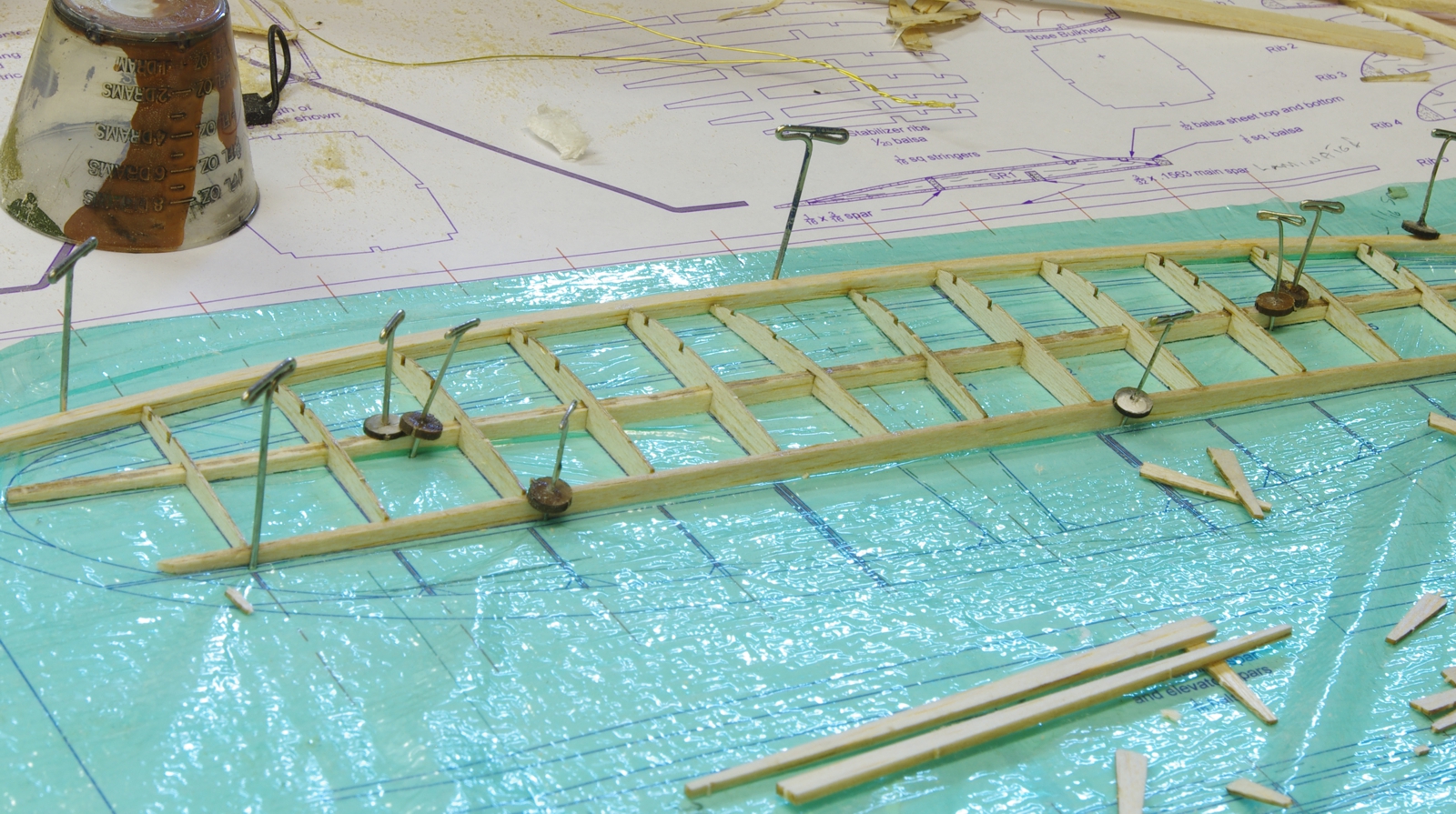

A sheet of 1/64 ply wrapped in Saran Wrap was placed between the stabilizer and elevator spars to keep the proper clearance.

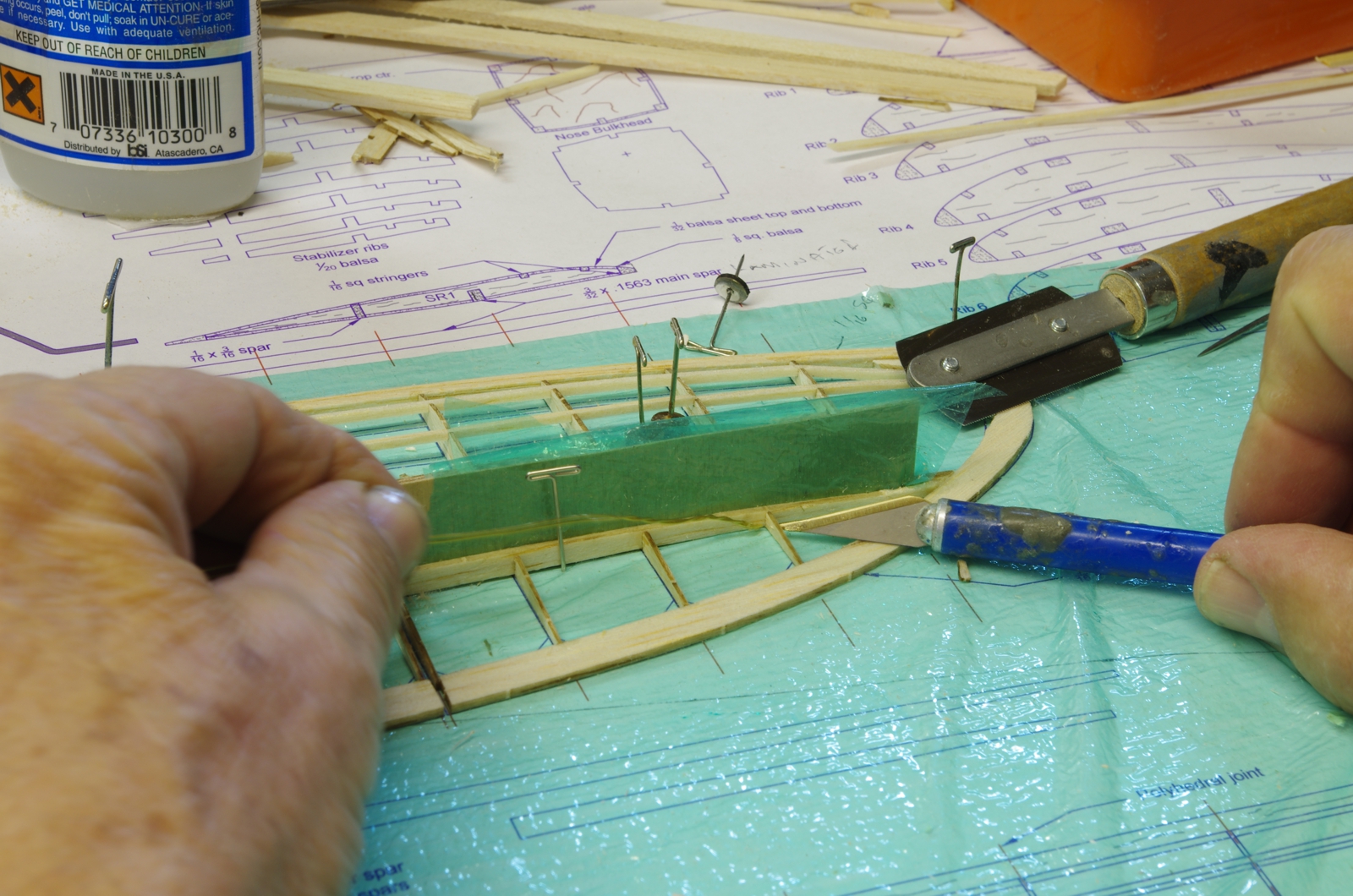

Small parts are best
installed by sticking them on the end of an exacto knife. The
little glue fork is helpful here so you don't glue the part to the
knife.

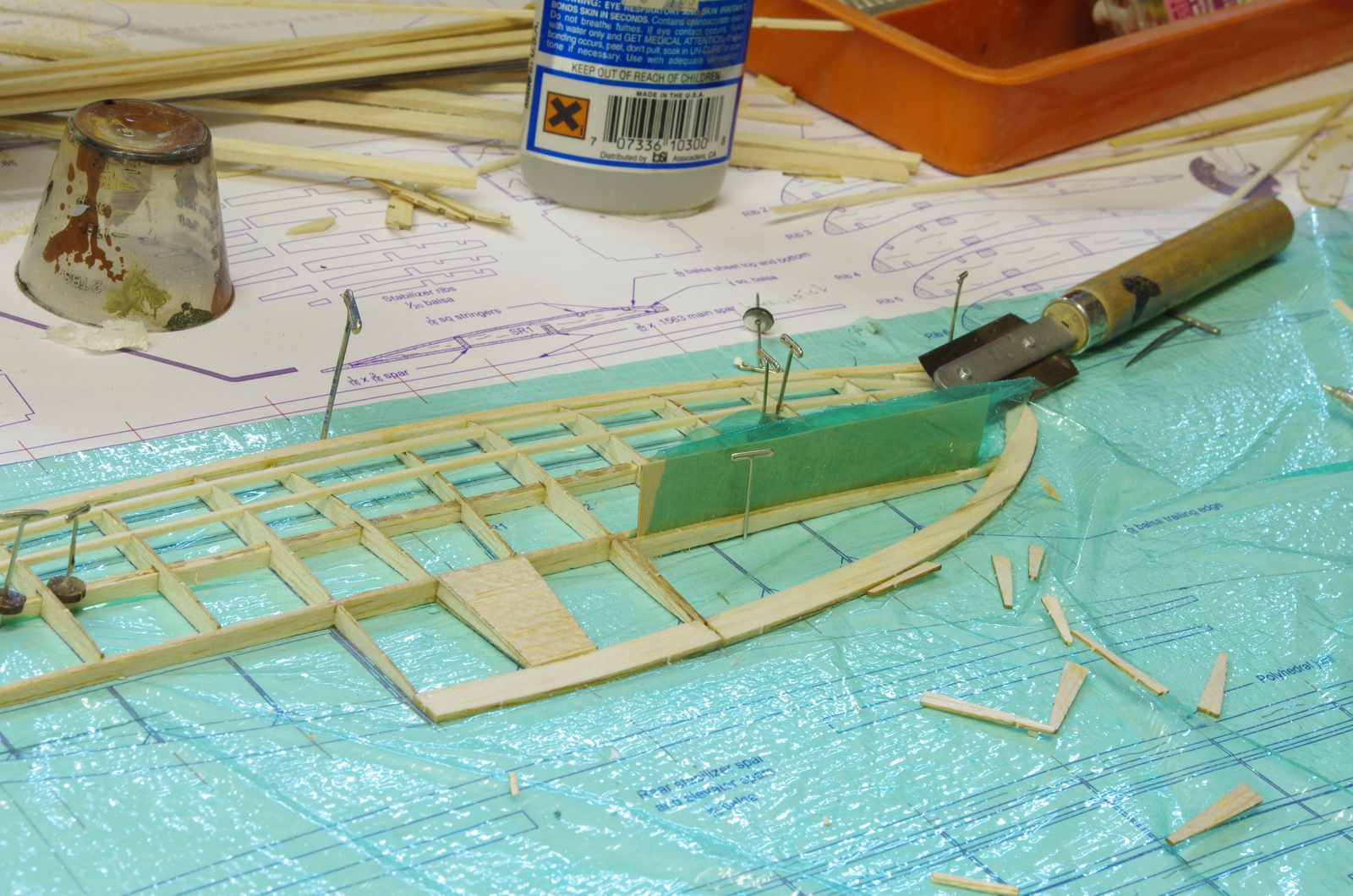

Elevators separated.
