Counting Scales

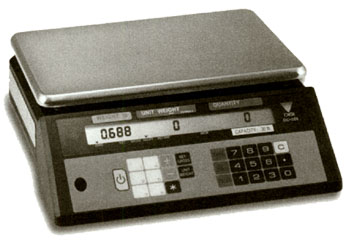

DIGI DC-688 Series
Portable Counting Scales


Standard Features
  • Extra wide stainless steel platter
  • Three large numeric Liquid Crystal Displays (LCD) for weight, unit weight and quantity
  • Six preset unit weight recall memory keys
  • Count accumulation and subtraction function
  • Negative sampling and counting (count out of a full container)
  • Numeric keyboard
  • Pushbutton or keyboard tare entry
  • Net/gross weight display switching
  • Internal buzzer
  • 115 VAC power
  • Battery saving auto power-off function (selectable settings 3 minutes, 10 minutes, 30 minutes, 1 hour, 3 hours,disabled)
    Batteries not included


Specifications


WEIGHT DISPLAY RESOlUTION:
1/6000 (1/7500)

WEIGHT DISPLAY:
Five digit

UNIT WEIGHT DISPLAY:
Five digit

QUANTITY DISPLAY:
Six digit

INTERNAL RESOlUTION:
1/30,000		 POWER:
115 VAC
9V provided by six "D" cell batteries
(500 continuous hours with standard "D" cell batteries, 1000 hours with "D" cell alkaline batteries)
Batteries not included

POWER CONSUMPTION:
1.5W

FREQUENCY:
50 or 60 Hz		 OPERATING TEMPERATURE:
14° F to 104° F (-10° C to 40° C)DIMENSIONS:
Platter: 13" L x 10" W
(330.2 mm L x 254 mm W)
Carrying case (inside):
15" L x 17" W x 7" H
(381 mm L x 431.8 mm @ x 177.8 mm H)Overall: 14.44" L x 13.5" W x 4.68" H
(367 mm L x 343 mm W x 119 mm H)

WARRANTY:
2-year limited warranty




PART#DESCRIPTIONCAPACITYEST. SHIP
WEIGHT		SUGGESTED
LIST PRICE
74023...................DC-688..........................6 lb x 0.001 lb..................15 lb (7 kg)....................$595.00
74024...................DC-688..........................15 lb x 0.002 lb..................15 lb (7 kg)....................595.00
74025...................DC-688..........................30 lb x 0.005 lb..................15 lb (7 kg)....................595.00
74026...................DC-688..........................60 lb x 0.01 lb..................15 lb (7 kg)....................$595.00

Consult factory for KG units.

Options/Accessories
73189.............Six "D" cell alkaline batteries.........................................................$15.00
73296.............Carrying case......................................................................................$160.00
73353.............Additional operating manual..........................................................$25.00
