Coin Counting Scales

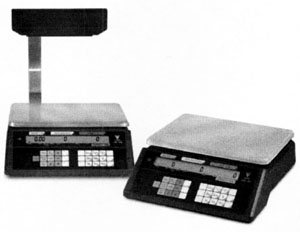

DIGI DMC-688 Series
Portable Coin Counting Scales


Standard Features
  • Dusl displays for cashier and customer view
  • Three large high contrast CD displays: weight, denomination and dollar amount
  • Dollar amount accumulation or subtraction
  • 500 continuous hours with standard "D" cells, or 1000 hours with alkaline batteries
  • Programmable denomination and unit weight
  • One touch tare entry keyboard
  • Reverse sampling and counting capability
  • Eighteen preset keys for additional coins or tokens
  • Rugged heavy duty design, yet lightweight (10lb/4.4kg) for portability
  • Battery saving auto power-off function
  • Toggle between coin count and dollar amount
    Batteries not included


Specifications


DISPLAY:
Liquid Crystal Display (LCD)		 POWER CONSUMPTION:
1.5 W		 DIMENSIONS:
13.5" W x 14.5" D x 5.0" H
(343mm W x 368mm D x 127mm H)
WEIGHT DISPLAY:
Five-digits		 MEMORY ITEMS:
Nine preset denomination keys, nine
user definable keys		 ESTIMATED SHIPPING WEIGHT:
15 lb (7kg)
UNIT WEIGHT DISPLAY:
Five-digits		 OPERATING TEMPERATURE:
14° F to 104° F (-10° C to 40° C)		 WARRANTY:
2-year limited warranty
VALUE DISPLAY:
six-digits		 DENOMINATION COUNT:
$9,999.99
INTERNAL RESOLUTION:
1/30,000		 ACCUMULATED COUNT:
$9,999.99
POWER SOURCE:
117 VAC



PART#DESCRIPTION
CAPACITY		WEIGHING
RESOLUTION		PLATTEREST. SHIP
WEIGHT		SUGGESTED
LIST PRICE

DMC-688 - Single Channel with Built-in Platform and Dual Display
74324...................6 lb..........................0.001 lb..................10" x 13"....................15 lb (7 kg)....................695.00
74325...................15 lb..........................0.002 lb..................10" x 13"....................15 lb (7 kg)....................$695.00
74326...................60 lb..........................0.01 lb..................10" x 13"....................15 lb (7 kg)....................695.00


DMC-688P - Single Channel with Built-in Platform, 20" Column, and Dual Display
74417...................15 lb..........................0.002 lb..................10" x 13"....................15 lb (7 kg)....................$795.00
73294...................60 lb..........................0.01 lb..................10" x 13"....................15 lb (7 kg)....................$795.00


Options/Accessories
73189.............Six "D" cell alkaline batteries.........................................................$15
73296.............Carrying case, hard shell with locking latches...............................$160.00
73386..............Anti-static sample tray....................................................................$18.00
73360.............Additional operating manual..........................................................$25.00
