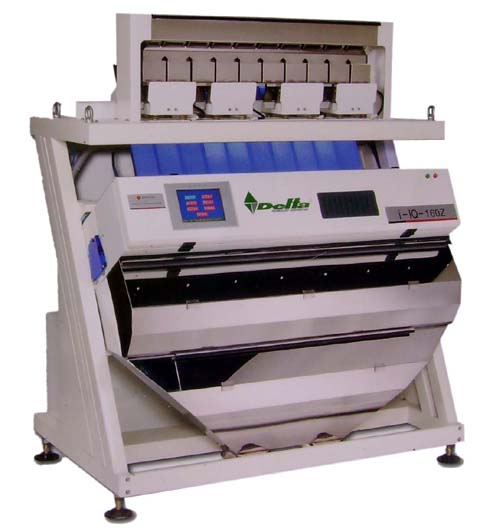

i-IQ SERIES <
Economical, High Precision, Inteligent Color Sorters for Rice and Small Products




From lighting systems to ejector design, from electronics to metallurgy, the i-IQ series represents the highest standards and newest technologies in optical sorters. All i-IQ sorters are self-adjusting, fully automatic and easy to operate. Plus, i-IQ sorters have been designed to sort with more accuracy and efficiency. Delta Technology's engineers have created a workhorse sorter designed specifically for rice. Rugged and reliable, from a value standpoint, no other sorters compare.
Unparalleled sorting accuracy


Delta technology has developed a more efficient way to sort rice.
  • The i-IQ employs a high resolution multi-pixel scanning Array, a proven method with many advantages over traditional CCD cameras. Real-time scanning immediately transforms lighting to voltage, eliminating time lag and improving accuracy.
  • This intelligent sorter optimizes the geometry of light, which greatly improves sorting efficiency, especially in chalky grain detection.
  • Delta's advances in scanning and lighting technology, when combined with our enhanced ejectors, has resulted in a marked decrease in the amount of good product in the reject stream and have achieved more than 99.9% sorting accuracy


Ejector valves enhanced for longer life and better preservation.

Delta's ejectors allow servicing of internal parts rather than replacing the entire ejector. The efectors., which operate at 1,000 cycles/second and are pitch-optimized for rice, are machined to higher tolerances and built with higher quality materials than typical ejectors. All of this results in significantly longer egector life, more precise sorting and less maintenance downtime.
Fast and easy product set up.

The sophisticatied graphical user interface on the i-IQ touch screen is designed for ease of use and fast product set up. The innovvative technology provides a variety of user options, making one button setup a reality. Choose between these set up modes.
  • Factory programmed
    • Yellow + Black + Chalky
    • Yellow + Black only
    • Chalky only
  • Automatic
  • Use defined
Advanced digital processing technology.
Large, full color graphical interface.


i-IQ models available with:

  • 160 Channels (128 primary/32 resort), 4-5 tons/hour approximate production capacities.
  • 240 Channels (192 primary/48 resort), 6-7 tons/hour approximate production capacities.
  • 320 Channel (256 primary/64 resort), 8-10 tons/hour approximate production capacities.

All production capacity data is based on white polished rice with a 2% defect level.


Available in these configurations to meet your throughput, accuracy and resort requirements: 160, 240, 320 channels.
TECHNICAL DATA
Model i-IQ 160 i-IQ 240 i-IQ 320
Electrical 220 VAC
50 or 60 Hz, single phase power
1.4 KW		 220 VAC
50 or 60 Hz, single phase power
2 KW		 220 VAC
50 or 60 Hz, single phase power
2.7 KW
Air 64 CFM@ 90 - 120 PSI
1.8 m3/miniute @ 6-8 Bar		 88 CFM@ 90 - 120 PSI
2.5 m3/miniute @ 6-8 Bar		 120 CFM@ 90 - 120 PSI
3.4 m3/miniute @ 6-8 Bar
Operating Temperature 40 F - 95 F
5 C - 35 C		 40 F - 95 F
5 C - 35 C		 40 F - 95 F
5 C - 35 C
Net Weight 650 Kg / 1430 lbs 850 Kg / 1870 lbs 900 Kg / 1990 lbs
