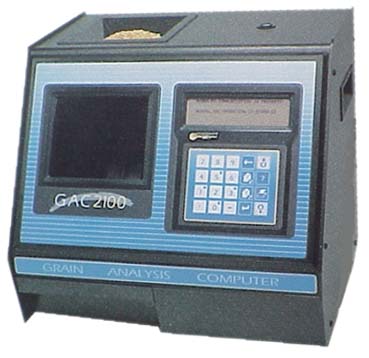

Easy to Set Up, Simple to Use The newest grain testing instrument is also the easiest to use! The GAC2100 Grain Analysis Computer makes testing a simple process that is quick and accurate, whether done on the bench or as a part of an automated test stream. |
|
Accurate Automatic
The GAC2100 is a model of accuracy because it eliminates the potential for guesswork or operator error
- Self-Loading - automatic loading of the test cell and strike-off leveling ensure consistent sample size
- Automatic Weighing - compensaes for variations in test weight, which affect moisture readings
- Automatec Temperature Correction - measures and compensates for variations in sample temperature
- Automatec Moisture Compensation - measures both electrical concuctance and capacitive reactance to compensate for varieations in surface moisture
Datalogging and Interface Options
New GAC2100 communication options are designed to simplify the repetitive nature of grain moisture measurement.
Computer Communication
Set up and operate your GAC2100 directly from your PC or through modem communications. The easy-to-use communications software uses many of the popular Window 95 features to emulate the capabilities of the GAC2100 on your desktop.
- Simplify the datalogging of samples;
- Operate your system dirctly form your personal computer.
Integrated Operation
Improve your grain analysis process with a fully integrated system. Combine the new GAC2100a with an automatic grain through operation.
The new GAC2100a combines all of the features of the standard model with a buil5-in hopper sensor. this elevated sensor detects when enough grain is present for testing. Communication between the GAC2100a and the sampler controls the flow of grain and starts the automatic measurement cycle. The measurement cycle repeats every 30 seconds depending upon the availability of a grain sample.
- Reduce the variability in your process;
- Provide consistent sample handling;
- Allow unattended operation;
- Provide system availability when samples need to be measured;
- Allow one person to monitor several units.
Main Feature Summary
Timesaving operations
- Moisture, temperature and specitic weight determination in 16 seconds (30-second cycle with GAC2100a)
- Quick keys for popular calibration selection
- Self-loading test cell
- Automatic weighing
- Automatic temperature correction
- Automatic moisture compensation
- Automatic alphanumeric sample identification numbers
- Communication software running on Windows 95
- Elevated hopper sensor (GAC2100a only)
Valuable system features
- Built-in memory of 64 calibrations (over 450 grain calibrations on file)
- Self-check before each moisture reading
- More than 8 languages available
- Access security levels
- Specific weight adjustment
- Large LCD dispay screen; 240 x 64 pixels
- Baud rate up to 19200 for two serial ports - one for printer, one for computer/modem
- Display error messages
- Authorized as the U.S. Federal Standard in 1997
Technical Specifications
| Performance | |
| Measurement Method: | Capacitance, conductance, weighting device |
| Applications: | Corn, Soybeans, Wheat, Barley, Sorghum, Cereal Grains, Oilseeds, Beans etc. Over 450 grain calibrations on file. |
| Measured Components: | Moisture Content: 0 to 50%* |
| Test Weight: | kgs/hl or lbs/bu** |
| Accuracy: | Moisture Content: |
| Repeatability: | Moisture Content: + or - 0.1%* |
| Resolution: | 0.1% moisture |
| Measurement Time: | GAC2100: 16 seconds GAC2100a (auto mode): 30-second cycle |
| Grain Temperature: | NTEP: 1 to 40°C (32 to 104°F) Non-NTEP: 0 to 50°C (32 to 122°F |
| Temp. Difference: | 20°C (68°F) room to grain |
| Sample Presentation: | Whole Grain |
| Sample Adjustment: | None |
| Sample Size (cereal grains) | GAC2100: Approximately 250 grams GAC2100a: Approximately 650 grams |
| Temperature Compensation: | Yes* |
| Remote Interface | |
| COM1 | 20 or 80 column printer, up to 19200 baud, DCE |
| COM2 | Computer up to 19200 baud, DTE (null modem adapter required)*** |
| Accessories | |
| Harsh Enviornment Serial Dot Matrix printer; RS232 Null modem adapter | |
| Instrument Data | |
| Number of Calibrations: | Up to 64 stored in memory |
| Languages: | English, French, German, Spanish, Italian, Portuguese, Flemish and more |
| Display Format: | Large LCD (240 x 64 pixels) |
| Display Content: | Grain Name, Calibration Name, Moisture %, Sample Temperature, Approximate Density (Approximate Test Weight)** |
| User Interface: | Menu driven |
| Date/Time: | Yes |
| Construction: | Painted steel, ABS plastic, polycarbonate |
| Installation Requirements | |
| Operating Temperature: | NTEP; 10 to 40°C (50 to 104°F) Non -NTEP; 5 to 45°C (41 to 113°F) |
| Humidity: | 5 to 95% (non-condensing) |
| Power Supply: | 85-264 Vac, 48-62 Hz |
| Power Consumption: | 20 VA |
| Dimensions: | (H x W x D) GAC2100: 37.5 x 38.7 x 40.6 cm (14.75" x 15.25" x 16") GAC2100a: 41.3 x 38.7 x 40.6 cm (16.25" x 15.25" x 16") |
| Weight: | GAC2100: 11.8kg (26lbs) GAC2100a: 12.2 kg (27 lbs) |
| Shipping Dimensions: | (H x W x D) GAC2100: 48.3 56.0 x 58.5 cm (19" x 22" x 23") GAC2100a: 68.6 x 53.3 x 58.5 cm (27" x 21" x 23") |
| Shipping Weigh: | GAC2100: 16.0 kg (35.5 lbs) GAC2100a: 17.3 kg (38 lbs) |
*depending upon application
**Except NTEP instruments
***Available from DICKEY-john
