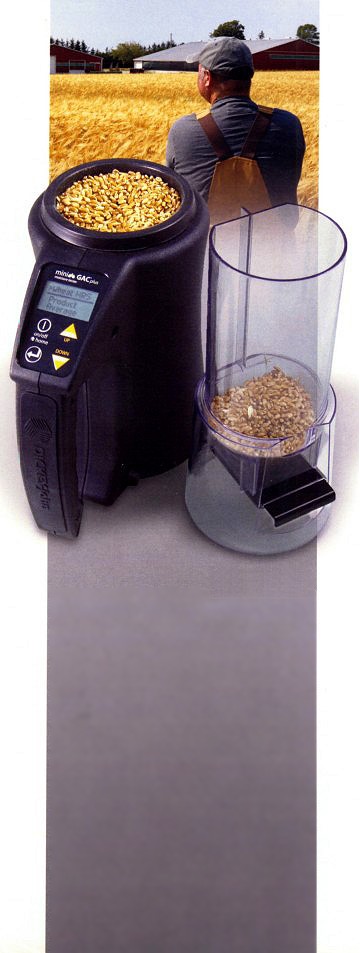

MINI GAC® AND MINI GAC® PLUS GRAIN MOISTURE ANALYZERS The most accurate handheld moisture Measuring grain moisture straight from the field has never been easier than with the DICKEY-john mini GAC® family of handheld grain moisture analyzers. These award winning handheld moisture testers offer the highest level of accuracy in their class, plus mini GACs are fast and easy to use. The mini GAC Grain Moisture Analyzer family includes: • mini GAC - for highly accurate moisture testing. • mini GAC plus - the ONLY handheld moisture tester on the market that measures accurate test weight. Features and Benefits: • Simplifies operation with menu-driven interface • Eliminates pre·weighing with an internal scale • Avoids cumbersome screw caps that can cause grain damage and oily residue • Measures over 450 types of grain and product • Easily loads calibrations with a USB • Tests hot or cold grain between 32 and 122°F • Receives accurate measurements in a variety of conditions with automatic temperature compensation Backed by the Power of Dickey-john: When you buy a mini GAC and mini GAC plus, you get all the dependability and value you expect from DICKEY-iohn products. DICKEY-iohn’s advanced technology and superior electronics are backed by a team of expert, in-house mechanical, electrical, software, and test engineers. All mini GACs are manufactured by DICKEY·iohn under strict quality control in an ISO 9001 certified facility. Made in the U.S.A. |
|
|
||||
|
Unit Specifications
|
Grain Temperature
| |||
| Measurement Method: |
capacitance, conductance, internal scale, temperature |
Measurement Specifications: | ||
| Moisture range: | 5 - 45 % (depending on grain type) | Accuracy: | 1.0° F or 0.5° C | |
| Grain temperature: | 32 - 122° F (0- 50° C) | Temperature resolution | 0.1° F or 0.1° C | |
|
Temperature difference: |
36° F (20° C) instrument to grain sample |
Test Weight Specifications** | ||
|
Temperature compensation: | automatic | Repeatability |
0.5 lb/bu (0.6 kg/h) in commercial trade range, depending an grain type | |
|
Grain type: | whole grain, no sample preparation | |||
|
Sample size: |
1 pint (0.47 L) | |||
|
Display: | LCD (106 x 56 pixels) | Test weight resolution: | 0.1 Ib/bu (kg/hl) | |
| Analyzer height:* | 11.9 in (30.2 cm) | |||
|
Analyzer width: * | 4.8 in (l2.2 cm) | Other Specifications | ||
| Analyzer depth:* | 8.3 in (21.1 cm) | Operating temperature: | 40- 113° F (5 ·45° C) | |
| Weight (total): | 2 lbs 7 oz (1.1 kg) | Humidity: | 5 - 95% non-condensing | |
| Measured parameters: |
moisture, grain temperature and test weight * * | Power: | 9 VDC battery (installed) | |
| Calibrations: |
20 grain calibrations (choose from over 450 calibrations that are available) |
* Measured with loader/striker in carrying position. * * Test weight specifications apply to the mini GAC plus only. | ||
|
Moisture
Measurement Specifications
| ||||
|
Moisture repeatability: |
0.2% moisture, depending on grain type, in commercial trade range, typical | |||
|
Moisture resolution: | 0.1 % moisture | |||
|
|

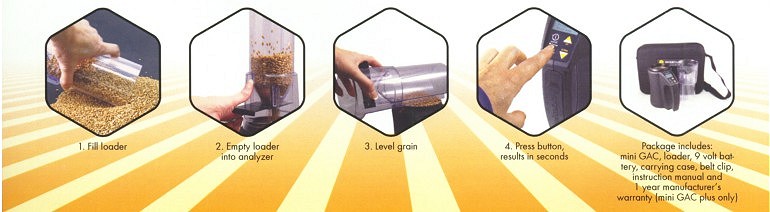

into analyzer |
|
results in seconds |
5- Package includes: mini GAC, loaders, 9 volt battery, carrying case, belt clip, instruction manual and 1 year manufacturer's warranty for mini GAC plus only. |
