Calibration Plus sells moisture meters and grain and rice equipment and industrial supplies. We carry Dickey-John, Motomco, Yamamoto and other manufacturer products. This is a small list of the services available to you from Calibration Plus. We pride ourselves in giving you, our customer, the service you expect. Calibration Plus Motomco Sales & Service and on site repair and installation Engineering Services-custom and existing systems Interface Controls Automated packaging systems Scale repair and upgrades Custom N2 flush systems USDA, GIPSA program updates QC lab equipment repair and calibration Food grade equipment Automated computer control program changes Operator training SB198, GMP Grain conveyor specialities<br>Palletizers, robotics Turn key process. Control supply & Design Used process mill equipment
Service & Repair

34 W. Hacienda Lane
Woodland, CA 95695
Phone 530 662-7752
Fax 530 662-3998
Mobile, Voice Mail 530 848-2970
E-mail calplus@earthlink.net

Service and Certification
Department of Food and Agriculture
Division of Measurements and Standards
Service Agent
Lic. # 03959
Scale Certification.

We service and repair this equipment.

We service and repair this equipment.

Profit from precision

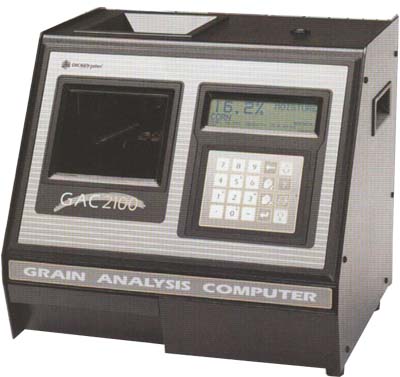

If you're handling grain, you need the DICKEY-john GAC2100 GI. The GAC2100 GI is an economical, non-NTEP version of DICKEY-johns popular GAC2100 NB, which is used for officaial moisture measurement by USDA/FGIS, licensed FGIS agencies and most grain terminals and country elevators in the US. THE GAC2100 GI is as accurate as the GAC2100 NB, it can store up to 16 grain calibrations, and it delivers the widest grain and unit operating temperature ranges available in commercial moisture meters.

The GAC2100 GI is fully automatic for these tasks:
  • sample weight
  • temperature compensation
  • moisture correction
The GAC2100 GI can handle 16 different grains, including:
  • edible beans
  • cereals
  • grass seeds
  • oilseeds
  • vegetable seeds

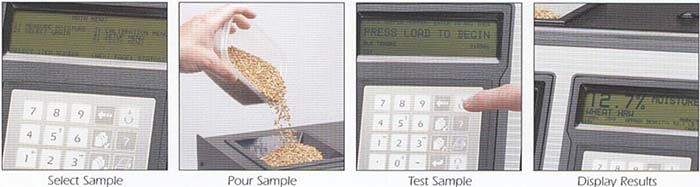

Operating the GAC2100 GI is a simple matter of Selecting the desired product to test. Pouring the sample into the test hopper, Testing the sample, and Displaying the results. An easy-to-read LCD displays one-button prompts to quickly and easily step the user through the entire procedure, which takes just a few seconds start to finish. Two separate RS232 ports allow test results, by sample number, to be logged to a host computer and for sample tickets to be printed. The GAC2100 GI may be programmed to test sixteen different grains, and it may be operated in eight different languages.



Technical Specifications


Performance
Measurement Method: Capacitance, conductance, weighing device
Applications: Cereals, oilseeds, grass seeds, vegetable seeds, edible beanstd>
Measured Parameters: Moisture temperature and specific weight
Measurement Time: 16 seconds
Moisture Range: 5 to 45% (depending on grain calibrations)
Grain Temperature: 0 to 50°C (32 to 122°F)
Temperature Difference: 20°C instrument to grain sample
Temp. Compensation: Yes, automatic
Moisture Repeatability: Moisture Content + or - 0.1% (depending on application)
Moisture Resolution: 0.1% moisture
Grain Sample: Whole grain, pellets
Sample Size: 250 gr (approx. for cereal grains)


Features
Number of Calibrations: 16 reprogrammable calibrations
Languages: 8 languages, operator selectable
Display: Large LCD display 240 x 64 pixels
Output: 2 standard RS232 printer ports


Installation Requirements
Operating Temperature: 5 to 45°C (41 to 113°F)
Humidity: 5 to 95% non-condensing
Power Supply: 85-264 VAC 48-62 Hz at 20 BA consumption
