SERIES 6200 SAMPLER
For Large Spouts and Large Flow Rates
(Vertical Mounting Only)
FGIS APPROVED







The series 6200 sampler is normally used for very large spouts with large flow rates. This sampler must be mounted in a vertical position.

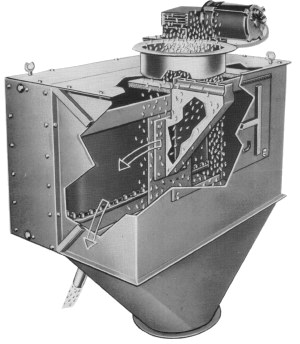

The series 6200 is a true diverter type sampler which obtains a representative sample of the entire flow stream. It can be used to sample most dry bulk flowable solids including grains, plastic pellets, powders, meals and other dry aggregate materials.

This unit is ideal for large flow rates and is recommended to be used when space is at a premium. It must be mounted in a vertical position and is shorter in length than the same size 6800 type sampler. It can be used in a round, square or rectangular spout.

The 6200 is a totally sealed unit. Dust and whole particles do not leak out of the sampler whether the unit is new or has been in service for many years. Dust seals also protect the diverier opening when it is at rest thus insuring the integrity of the sample.

All wearing surfaces inside the sampler can be lined with your choice of rubber, UHMW, urethane, ceramic urethane or ceramic tile.

An electric control enclosure is supplied complete with all necessary switch gear and internal wiring to operate the entire system. This unit is supplied standard NEMA 12 with NEMA 4 and 9 options also available. All motors, on-off switches and limit switches on the sampler are supplied class 11, group G (explosion-proof).
