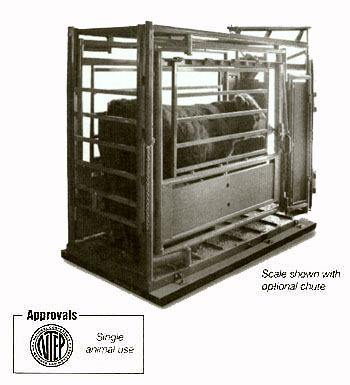

Livestock Scales RoughDeck™ SLV Single Animal Livestock Scale Standard Features Mild steel construction Rugged diamond safety treadplate deck Rigid structural steel channel frame NEMA 4X aluminum side-access junction box without quick connector Signal trim summing board Four adjustable stainless steel SUREFOOT support feet 20 ft SURVIVOR EL147HE hostile environment load cell cable Four alloy steel load cells Specifications END LOAD CAPACITY: 125% full scale CABLE LENGTH: 20' (6 m) APPROVALS: NTEP certified, CC #92-001A9 Class III emin = 1 lb WARRANTY: 5-year limited warranty (scale only) DIMENSIONS PART# SIZE CAPACITY EST. SHIP WT 78452................... 3' x 8'.......................... 4000 lb.................. 565 lb.................... 78453................... 4' x 8'.......................... 4000 lb.................. 750 lb.................... PART# SIZE CAPACITY EST. SHIP WEIGHT SUGGESTED LIST PRICE 78452................... 3' x 8'.......................... 4000 lb.................. 565 lb.................... $1,895.00 78453................... 4' x 8'.......................... 4000 lb.................. 750 lb.................... $1,995.00 Options/Accessories N/A............. Smooth deck instead of diamond safety tread plate..................................................................................... No charge N/A............. Stainless steel load cells (RL35023S) and stainless steel junction box.......................................................... $705.00 N/A............. Stainless steel welded-seal IP67 load cells (RL35082) and stainless steel junction box................................... $1,170.00 N/A............. Angle iron bolted to scale for wood deck provisions (wood to be supplied by customer)................................... $200.00 Consult factory for these additional options: Chutes Gates and racks

---

---
