RICE SIFTER
  Model: SF-31 / 100

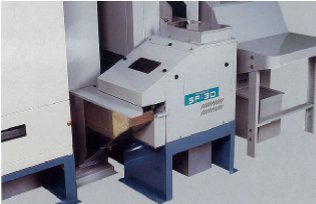

yamamoto model SF-31 sifter Setting: 5HP milling machine new.jpg - 13566 Bytes
Setting: 5HP milling machine

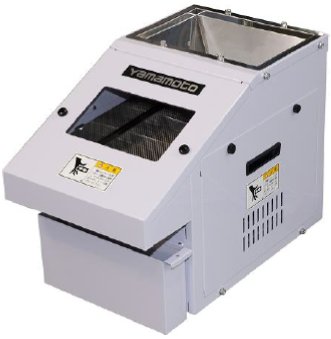

yamamoto-sf3t-sifter with covers1new.jpg - 16459 Bytes

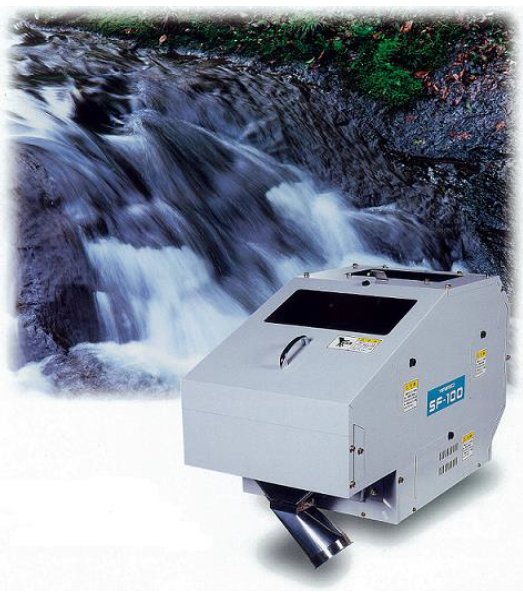

yamamoto-SIFTER Model 100 new.jpg - 70197 Bytes
 FEATURES
  1. Refined milled rice by method of Complex Horizontal Oscillation of straight line of inclined screen and circular motion.

  2. Inclination of screen can be adjusted at the range 5 ~ 8° {degrees} (Screen A)

  3. The Sifting Balls prevent the jam of screen.

  4. There are five screen slot size. (option): 1.7, 1.8, 1.9, 2.1, 2.2

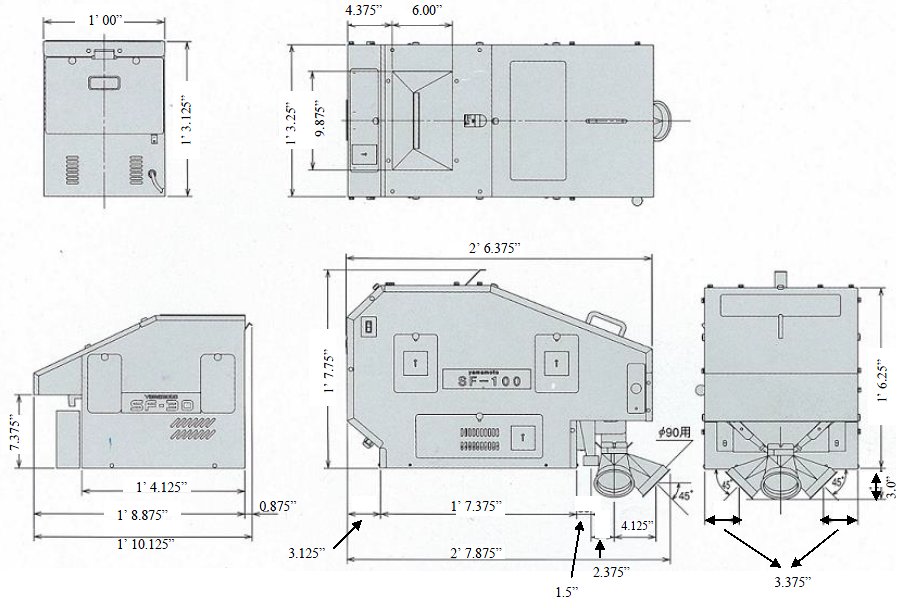

 DIMENSIONS
 FS-31   FS-100
yamamoto dimensions sf31-sf100 sifters -21new.jpg - 85881 Bytes


 Specifications:
Model SF-31 SF-100
Length (ft’inch”) 1’10.125” 2’6.375”
Width (ft’inch”) 1’00” 1’3.25”
Height (ft’inch”) 1’3.125” 1’7.75”
Weight (lbs) 52.91 92.59
Power 0.1( 1 phase 100V ) 0.2( 3-phase 200V )
Capacity (lbs/h) 286.6–705.47 2,204.62(Max)
Standard Screen A (mm) 2.0 2.0
Standard Screen B (mm) -- 4.4
Option Screen (mm) (Option of Screen A) 1.7 / 1.8 / 1.9 / 2.1 / 2.2
Above specification and dimensions may change due to
Yamamoto's continuous development program.
