Paddy Separator
    SE-1000

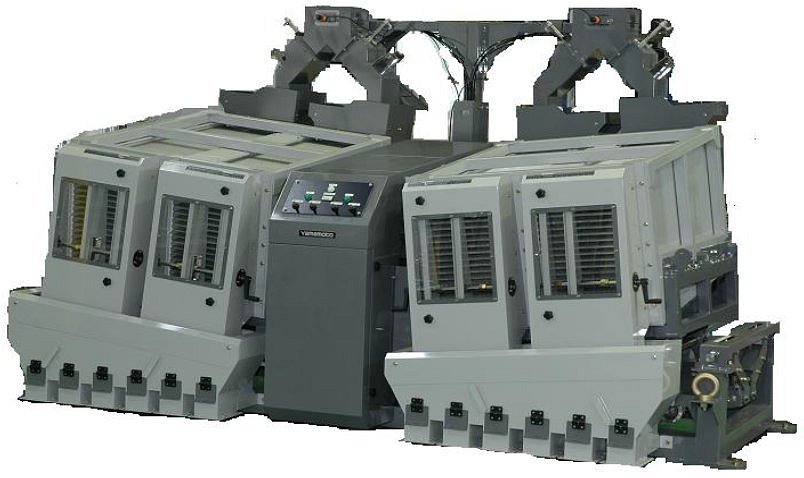

yamamoto12- paddy separator oodel se-1000 -21new73.jpg - 59081 Bytes
SE-1000


 Features
  • Steady and Superior Performance
    Adjustments during operation isn’t necessary because of its constant and steady separating performance.
  • Automatic Stop Device
    Compact design and large capacity. Installation space is very small.
  • Minimized Installation Space
    Machine automatically stops as soon as the tank becomes nearly empty.

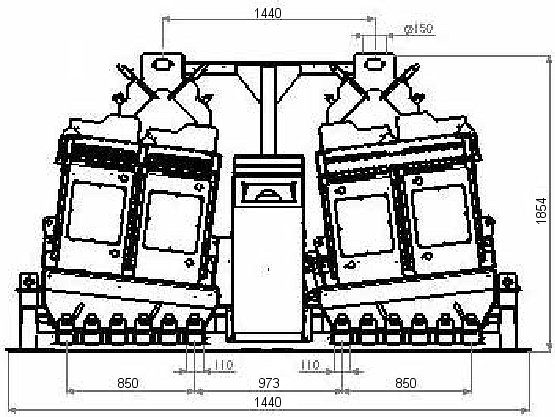

 Dimension
(unit: mm)

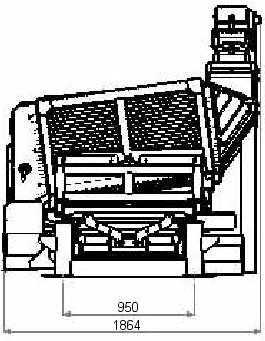

yamamoto12- dimensions of paddy separator se-1000 -21new73.jpg - 73624 Bytes 		yamamoto12- dimensions of paddy separator se-1000 side view -21new73.jpg - 31458 Bytes


 Specifications
Model name
SE-1000
Length (mm)
3,440
Width (mm)
1,864
Height (mm)
1,854
Output Capacity (Mt/h)
7 ~ 10
Net Weight (kg)
1700
Power
3-phase 200V/220V/380V/460V
Motor (kW)
3.7

*Output capacity may differ by the mixing ratio of paddy and brown rice to be separated
*Above specification and dimensions may change due to Yamamoto's continuous development program.
