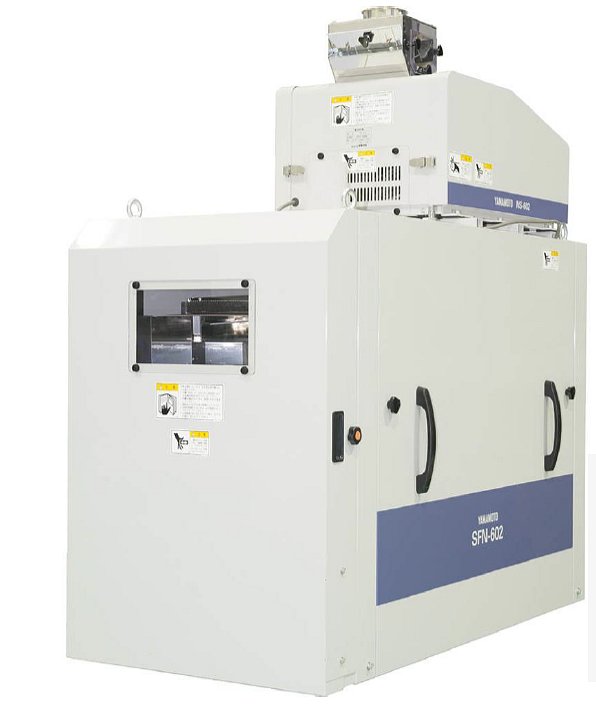

Grading Sifter Bran Ball Separator      SFN-602S / NS-602

SFN-602S	NS-602

Features

Horizontal circular vibration method   Screen (3 layers) SFN-602S  Horizontal back- and-force vibration method   Bran Ball Separator NS-602·SFN-602S	At the inlet part, spread the white rice on the whole screen by circulation motion, and shifts to back-and-force motion through outlet. For removal of broken rice and bran, it is the most efficient and mild to rice. Adapt the mixture of circulation and linear motion and it contributes to less vibration.
	Remove the bran ball from white rice by smooth weak vibration.

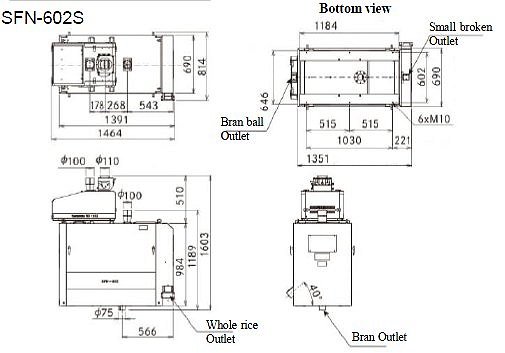

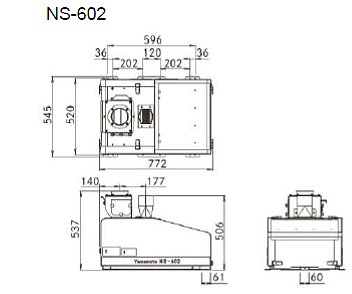

DIMENSIONS

Specifications:

Equipmemnt		Unit	Rice Sifter	Bran Ball Separator
Model		--	SFN-602S	NS-602
Size	Length (mm)	mm	1,464	772
	Width (mm)	mm	814	545
	Height (mm)	mm	1,603	537
Net Weight (kg)		kg	265	50
Sieve	Sieve opening	mm	Bran Ball Separator (NS0602)	Scieve 3.5
		mm	Sieve B 1.94 (wire dia ϕ 0.6) 2 pieces
		mm	Sieve C 1.04 (wire dia ϕ 0.55)
	Inclination angle	*	3
Max Capacity (kg/h)		kg/h	6,000	6,000
Necessary Power (kW)		kW	0.6 (3 phase 200V)	0.2 (3 phase 200V)

*Above specification and dimensions may change due to Yamamoto's continuous development program.
