Impeller with Oscillation
  Husker
  SY10R / 15R / 25R / 25RE / 35RE

yamamoto Impeller with Oscillation Huskersy model sy10r -21new6.jpg - 19363 Bytes
yamamoto Impeller with Oscillation Huskersy model sy15r -21new6.jpg - 23778 Bytes
yamamoto Impeller with Oscillation Huskersy model sy25re -21new6.jpg - 20865 Bytes

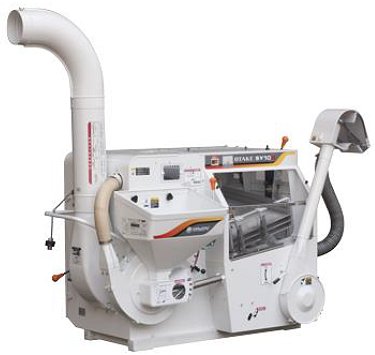

SY10R

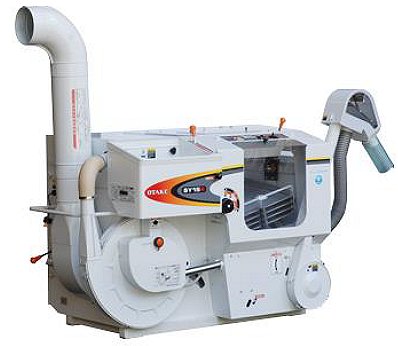

SY15R

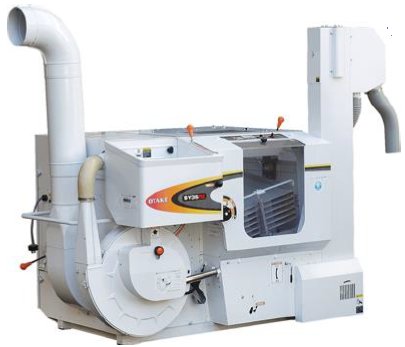

SY35RE
Yamamoto Impeller Type Husker
Yamamoto husker is a very unique design with an impeller instead of using traditional rubber rolls. This allows even relatively high moisture contents of paddy can be shelled out with high husking efficiency, regardless of any types of paddy, which was ever almost impossible for rubber roll type of huskers..

 Characteristic
  • Easy operation
  • Ready for operation due to built-in motor
  • High husking efficiency even high moisture contents of paddy
  • Easy and quick husking
  • Automatic screen angle adjustment
  • Easy maintenance
yamamotoc Impeller with Oscillation Husker .jpg - 14490 Bytes

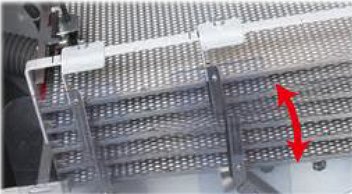

Magic eye (for all model)
yamamoto Impeller with Oscillation Husker magic eye for all models .jpg - 21174 Bytes
Foreign body removal spoke
(for SY25, 35)
yamamoto Impeller with Oscillation Husker Foreign body removal spoke for sy25-and 35 -21new.jpg - 14302 Bytes


 Specifications:
Model
SY10R-2SM
SY10R-M
SY15R-V
SY15R-M
SY25R-M
SY25RE-M
SY35RE-M
Capacity (kg/h)
360 -720
600 -1,020
900 -1,500
1,200 -2,100
Length x Width x Height (mm)
1629 x 898 x 1149
1826 x 1002 x 1242
1844 x 1142 x 1242
1987 x 1142 x 1717
2017 x1240 x 1717
Voltage
1 phase 200V
3 phase 200V
1 phase 200V
3 phase 200V
3 phase 200V
Motor (kW)
1.3
1.5
1.9
2.9
3.7
Number of Trays
3
4
5
6
Husk transportation capacity (m)
13
20
Main shaft revolution (rpm)
2,350 (1,950 -2,300)
1,650 (1,500 -1,700)
Husking Fan diameter x Width (mm)
321 x 50
506 x 50
506 x 80
Weight (kg)
161
157
232
230
264
282
310
*Above specification may change due to Yamamoto's continuous development program.
