Magnetic Separator   YMS-600/3000/4500/6000

YMS-3000

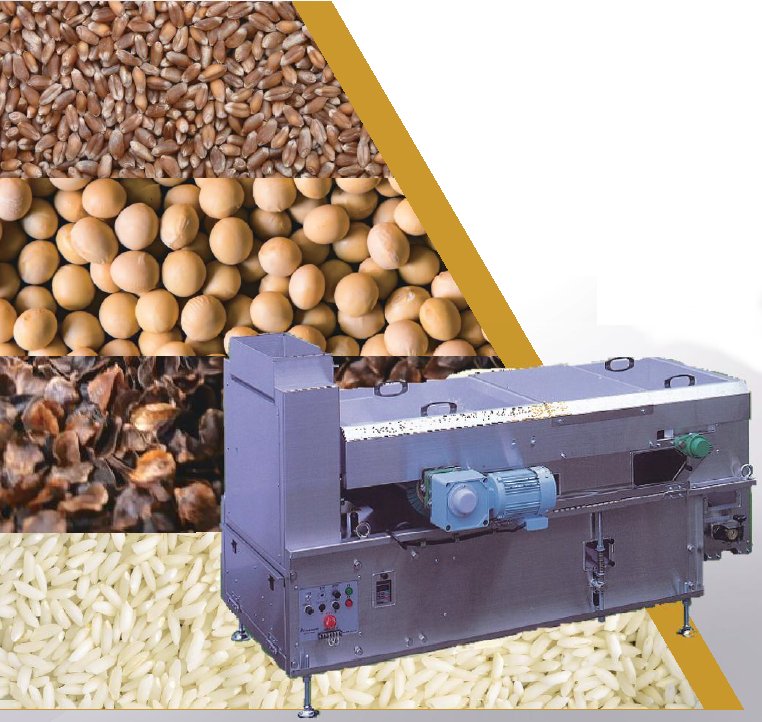

Yamamoto Magnetic Separator
Reliable Solution System Our Magnetic Separator can eliminate mud-balls, pumice, stones that contains iron with permanent magnet and separate material into good and reject.

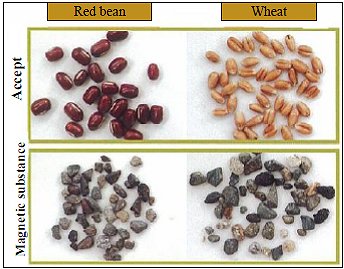

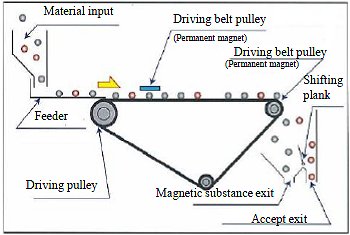

Method: Permanent Magnet divides material into accept and reject

Features  Brown Rice, Milled Rice This Magnetic Separator can take out mud-balls, pumice which are difficult to remove with Gravity Separator. Beans, Cereals This Magnetic Separator can be used for variety of things which contain iron. Feeding System This Magnetic Separator has special feeding system which enables to feed uniform amount. This system keeps feeding amount even and create high screening efficiency. *This Magnetic Separator may cause magnetic damages. Do not approach Cell phones, watches and other electronic devices and precision equipment. Do not approach this machine if you have pacemaker.

Specifications:

Model Name	YMS-600	YMS-3000	YMS-4500	YMS-6000S
Length (mm)	1,065	1,435	1,435	1,435
Width (mm)	290	748	1,027	1,327
Height (mm)	608	870	870	870
Power	100V	460V	460V	460V
Belt	100V	100V	100V	100V
Magnet	12,000G	12,000G	12,000G	12,000G
Magnet range (mm)	100	450	700	1,000
Weight (kg)	40	170	250	350
Utility	Brown rice, Milled rice, Beans, Wheat, Sesame etc
Capacity (t/h) Red bean	0.66	3.0	4.6	6.6
Capacity (t/h) Soybean	0.44	2.0	3.1	4.4
Capacity (t/h) Wheat / Rice	0.50	2.2	3.5	5.0
Capacity (t/h) Sesami	0.14	0.64	1.0	1.4

*Above specification may change due to Yamamoto's continuous development program.
