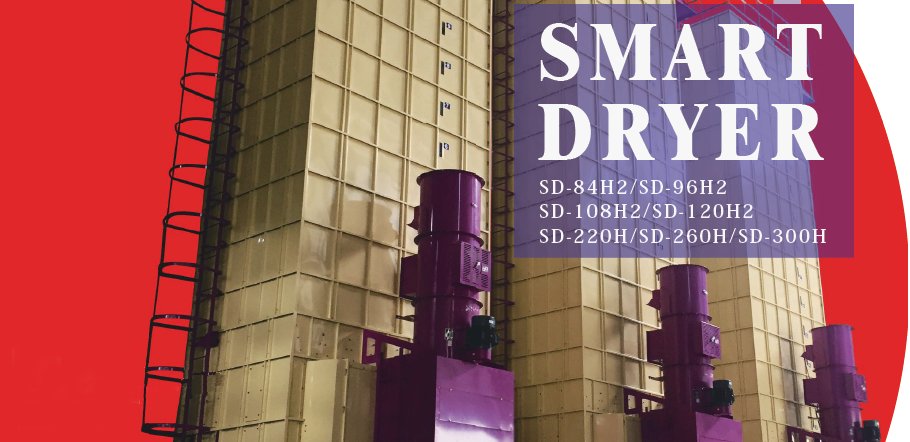

Smart model SD-84H2, model SD-96H2, nodel SD-108H2, model SD-120H2, model SD-220H, model SD-260H, model SD-300H t-21new-.jpg - 78749 Bytes


Smart Dryer Professional

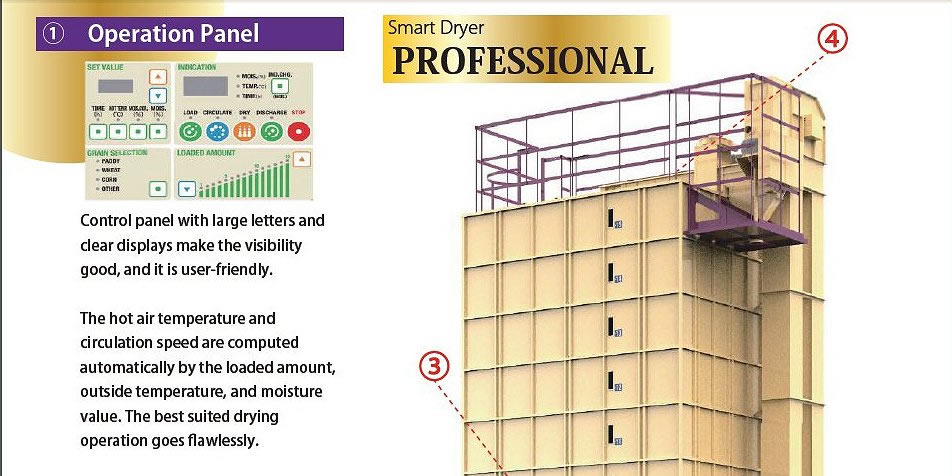

1 Operational Panel Control panel with large letters and clear displays make the visibility good, and it is user-friendly.The hot air temperature and circulation speed are computed automatically by the loaded amount, outside temperature, and moisture value. The best suited drying operation goes flawlessly.

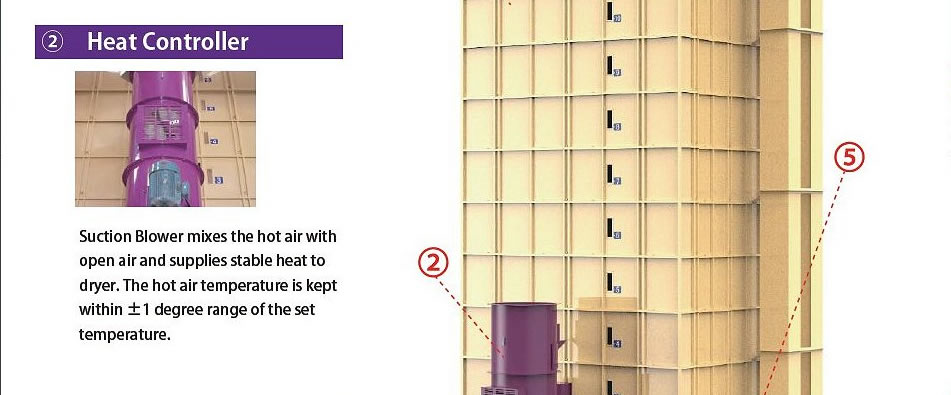

2 Hoat Controller Suction Blower mixes the hot air with open air and supplies stable heat to dryer. The hot air temperature is kept within ±1 degree range of the set temperature.

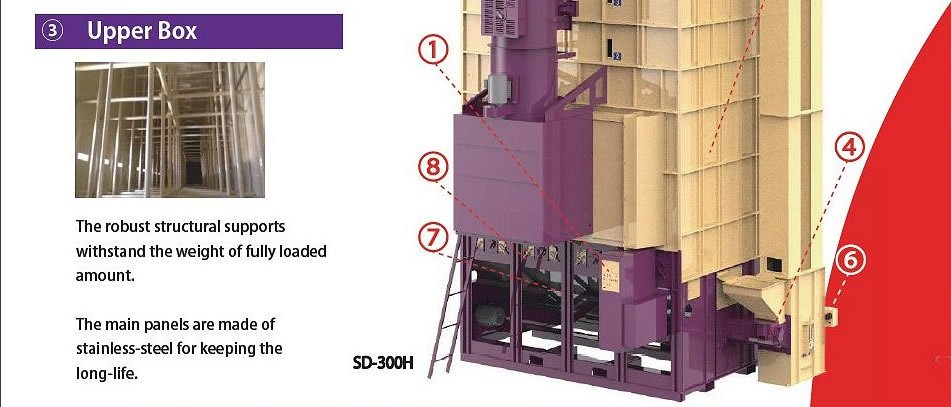

3 Upper Box The robust structural supports withstand the weight of fully loaded amount. The main panels are made of stainless-steel for keeping thelong-life.

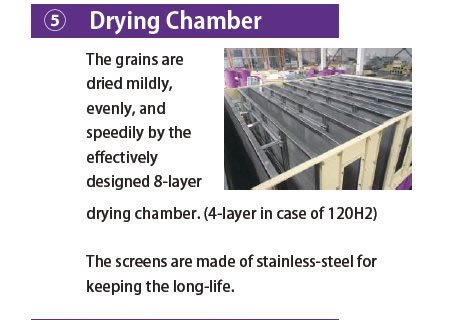

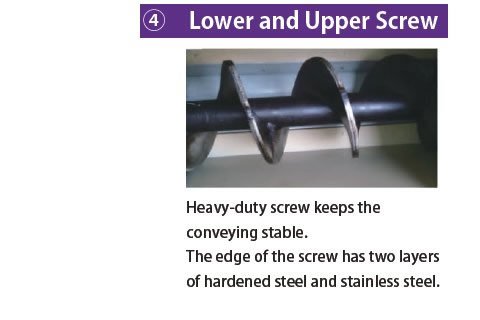

4. Lower and upper screw Heavy-duty screw keeps the conveying stable. The edge of the screw has two layers of hardened steel and stainless steel. 5 Drying Table The grains aredried mildly, evenly, and speedily by the effectively designed 8-layer drying chamber. (4-layer in case of 120H2) The screens are made of stainless-steel for keeping the long-life.

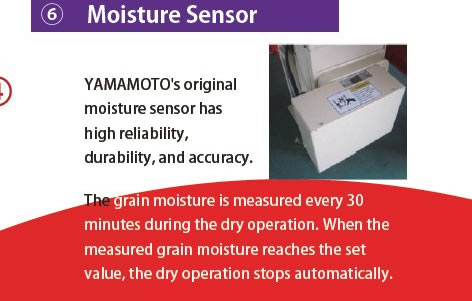

Smart Dryer Excellent 6 Moisture Sensor YAMAMOTO's original moisture sensor has high reliability, durability, and accuracy. The grain moisture is measured every 30 minutes during the dry operation. When the measured grain moisture reaches the set value, the dry operation stops automatically

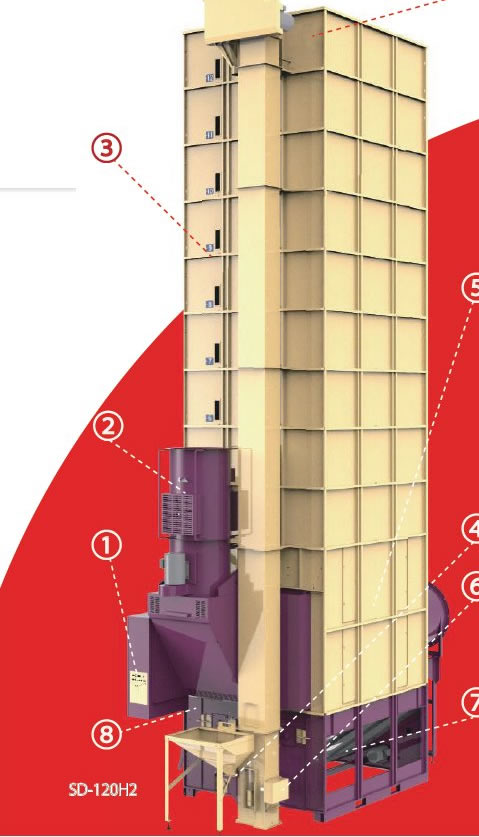

Yamamoto Smart Dryer Model SD-120H2

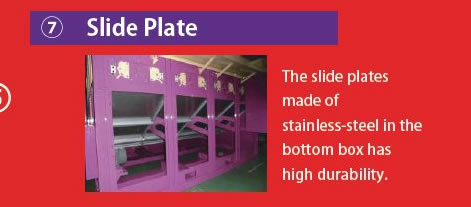

7 Slide Plate The slide plates made of stainless-steel in the bottom box has high durability..

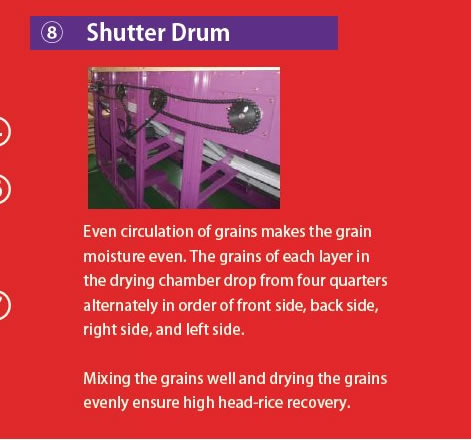

8 Shutter Drum Even circulation of grains makes the grain moisture even. The grains of each layer in the drying chamber drop from four quarters alternately in order of front side, back side, right side, and left side. Mixing the grains well and drying the grains evenly ensure high head-rice recovery

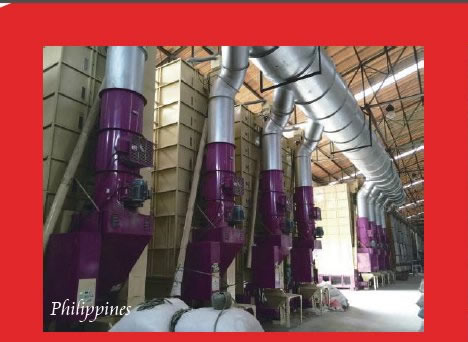

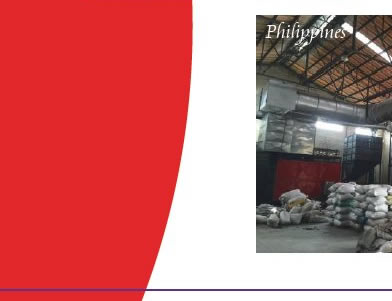

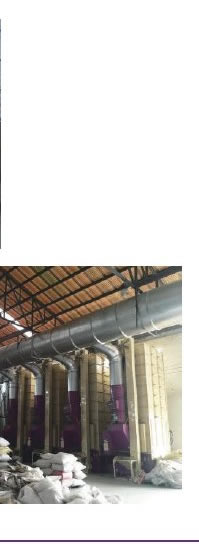

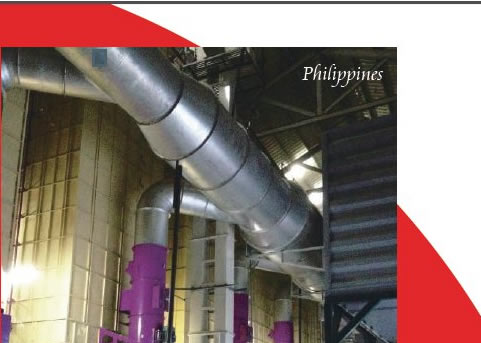

Philippines

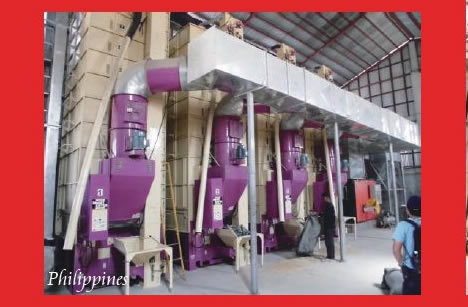

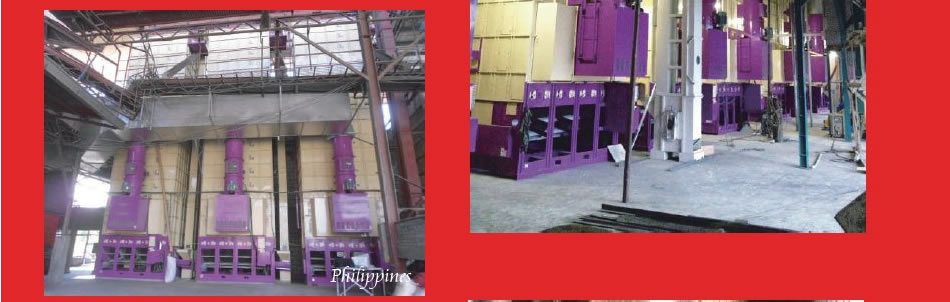

Philippines
Philippines

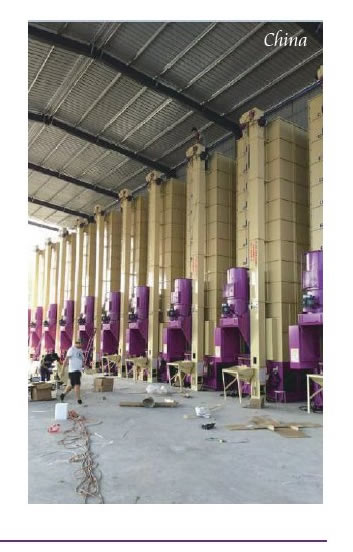

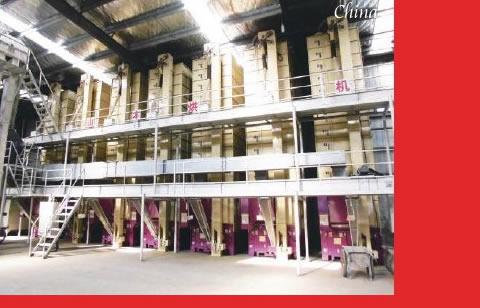

Philippines China
Our Location in Yamagata Access by plane: 1 hour fron Tokyo. Access by train: 3 hours from Tokyo
Yamamoto - There is no terminal on the road to improvement.

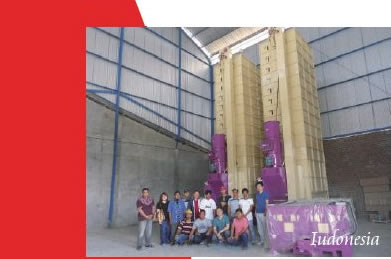

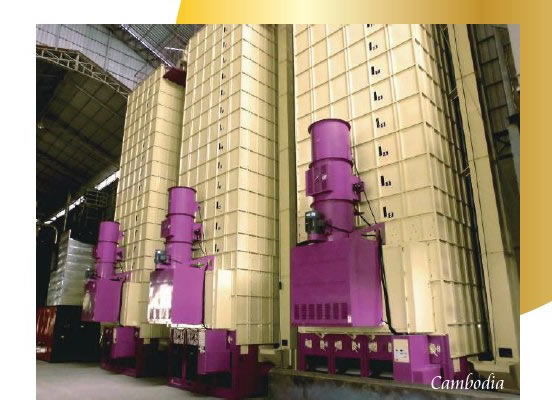

Iudonesia Cambodia

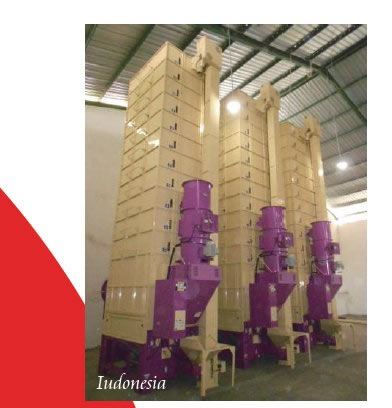

Iudonesia
Philippines China
Philippines

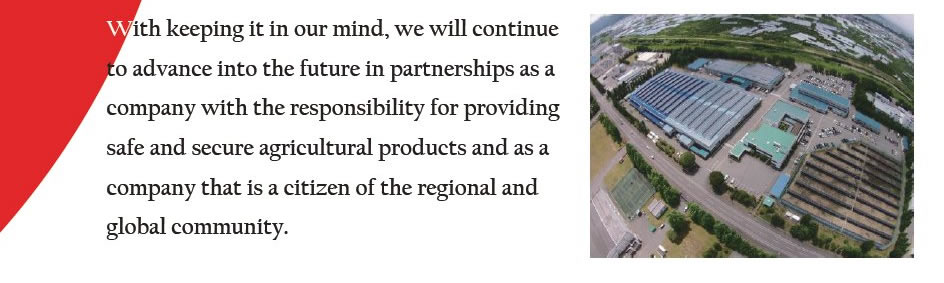

Yamamoto: With keeping it in our mind, we will continue to advance into the future in partnerships as a company with the responsibility for providing safe and secure agricultural products and as a company that is a citizen of the regional and global community.

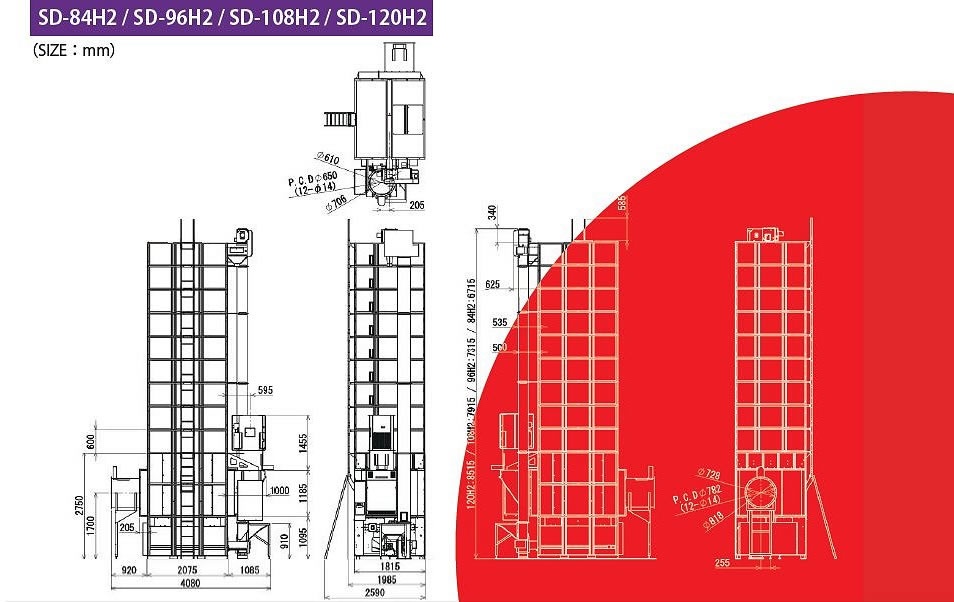

Dimensions Yamamoto Smart Dryers Models SD-84H2 / SD-96H2 / SD-108H2 / SD-120H2

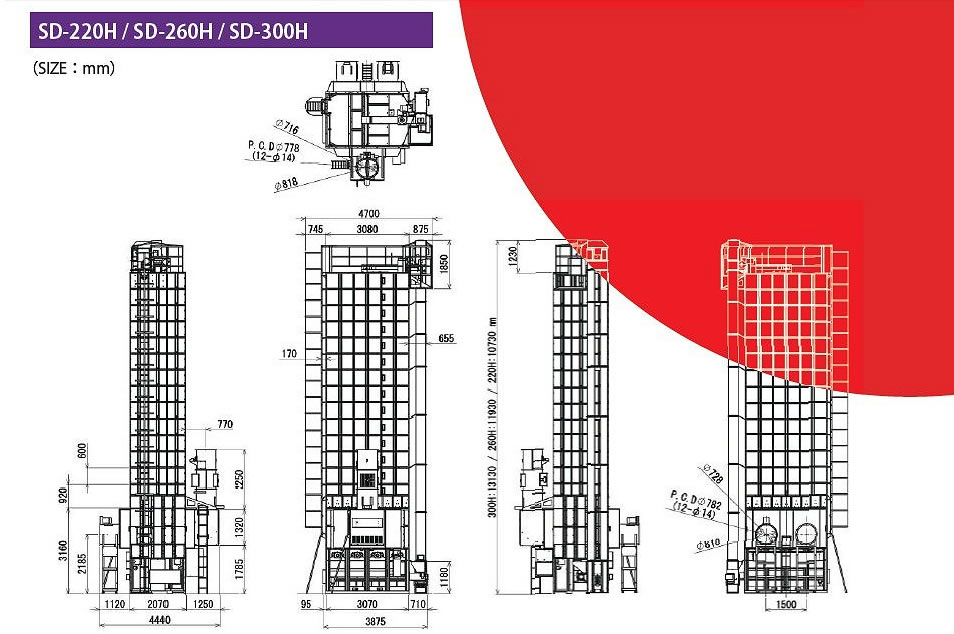

Dimensions Yamamoto Smart Dryers Models SD-220H / SD-260H / SD-300H

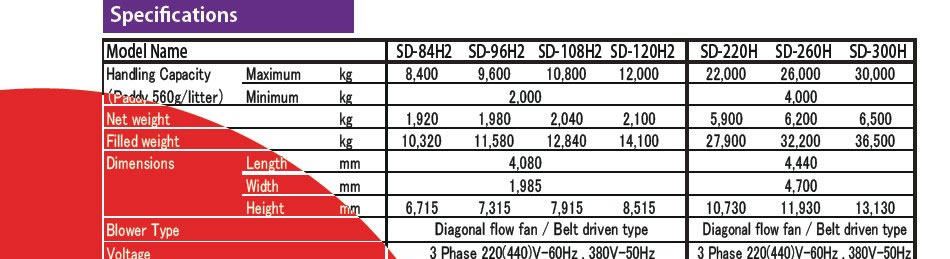

Yamamoto Specifications table for Model Name SD-84H2 SD-96H2 SD-108H2 SD-120H2 SD-220H SD-260H SD-300H Handling Capacity, Weights, Dimensions, Blower Type and Voltage

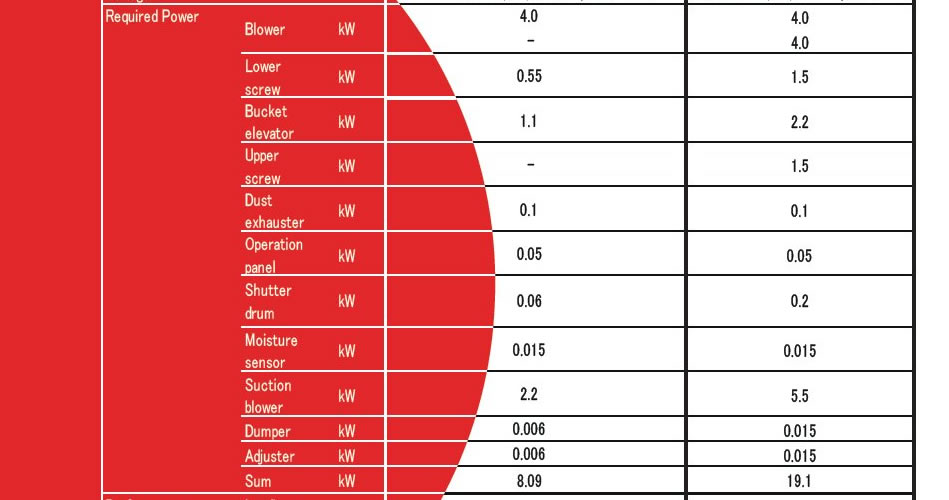

Yamamoto Specifications table for Model Name SD-84H2 SD-96H2 SD-108H2 SD-120H2 SD-220H SD-260H SD-300H Required Power

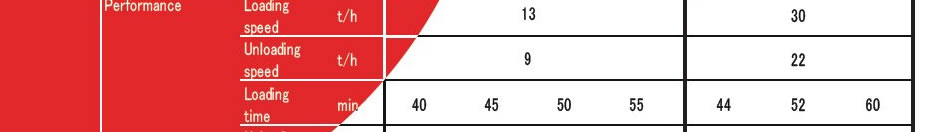

Yamamoto Specifications table for Model Name SD-84H2 SD-96H2 SD-108H2 SD-120H2 SD-220H SD-260H SD-300H Performance

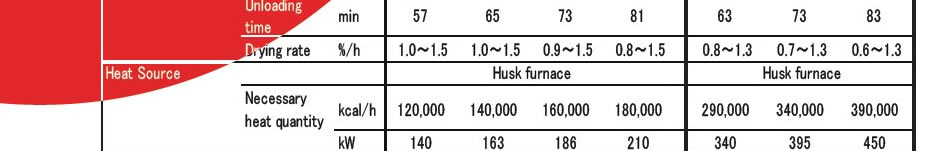

Yamamoto Specifications table for Model Name SD-84H2 SD-96H2 SD-108H2 SD-120H2 SD-220H SD-260H SD-300H Heat Source

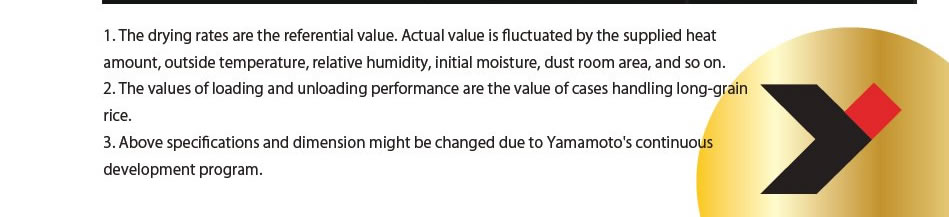

1. The drying rates are the referential value. Actual value is fluctuated by the supplied heat amount, outside temperature, relative humidity, initial moisture, dust room area, and so on. 2. The values of loading and unloading performance are the value of cases handling long-grain rice. 3. Above specifications and dimension might be changed due to Yamamoto's continuous development program.
