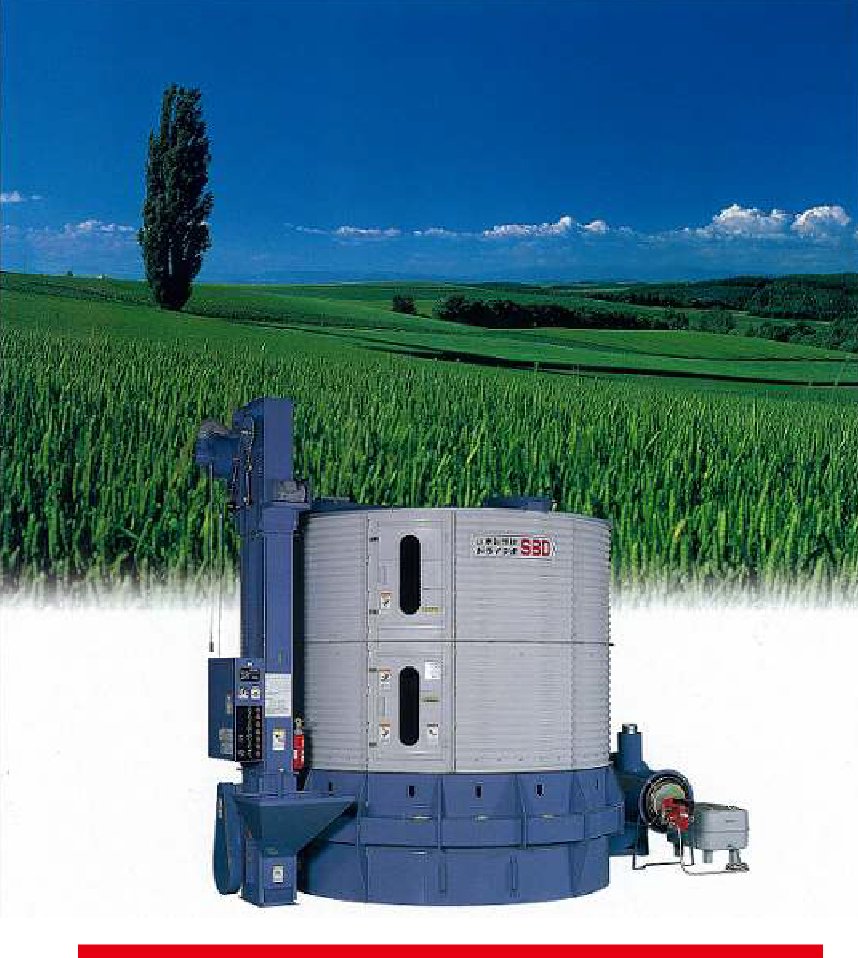

Circulating Dry Storage Device
   DRYDEPO
   SBD-3GSM
yamamoto circulating dryring device storage device 21new6.jpg - 160191 Bytes
Grain such as the paddy, barley, wheats,
and soybeans is ideally dried.
 Features
yamamoto triple grain windows -21new6.jpg - 8585 Bytes
  • It finishes it up in the grain of the high quality by the amount of the low temperature strong wind.
  • It is maintenance free in excelling in durability and safety and efficient burners adoption.
  • Height is lower than current dryers. Moreover, even dry ends are all full automation.
    (*At wheat and paddy dryness)

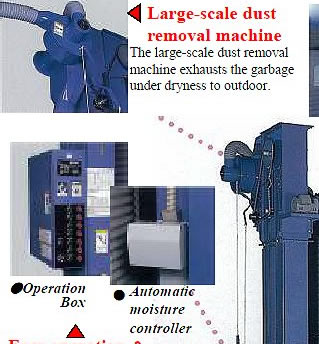

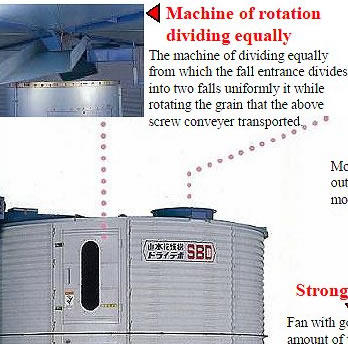

    Large-scale dust removal machine The large-scale dust removal machine exhausts the garbage under dryness to outdoor. Machine of rotation dividing equally The machine of dividing equally from which the fall entrance divides into two falls uniformly it while rotating the grain that the above screw conveyer transported Efficient fan Moisture is efficiently exhausted to outdoor with an efficient fan of the motor connecting directly.

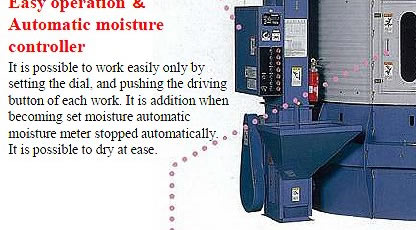

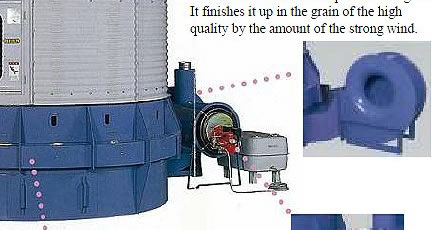

    Easy operation &Automatic moisture controller It is possible to work easily only by setting the dial, and pushing the driving button of each work. It is addition when becoming set moisture automatic moisture meter stopped automatically.It is possible to dry at ease. Strong wind amount fan Fan with good efficiency of sending the best amount of wind and wind pressure for grain. It finishes it up in the grain of the high quality by the amount of the strong wind.

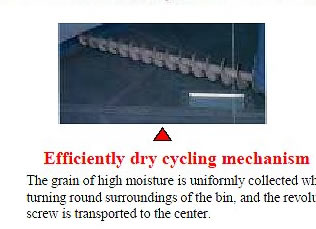

    Exhaust tube and exhaust cylinder The moisture after the exhaust tube and the exhaust cylinder dry is exhausted up. Efficiently dry cycling mechanism The grain of high moisture is uniformly collected while turning round surroundings of the bin, and the revolution screw is transported to the center. Maintenance free burner Neither soot nor the smell also is generated by the complete atomization combustion, and it is maintenance free.

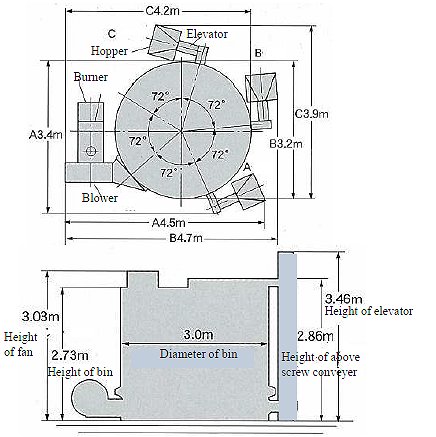

     Dimensions

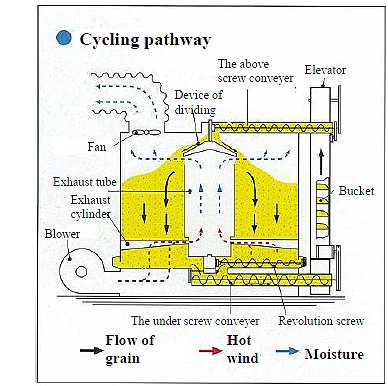

    Dimensions yamamoto circulating dryring device storage device Dry Depo SBD-3GSM -21new6.jpg - 44372 Bytesyamamoto illustration of dimensionc and cycling pathway of circulating dryring device storage device Dry Depo SBD-3GSM -21new6.jpg - 48543 Bytes


     Specifications:
    Model Name
    SBD-3GSM
    Amount of
    processing
    		  Height of the maximum piling up (m)
    1.8
      The maximum capacity (m³)
    11
      Amount of the maximum piling up (t)
    7 ( soybeans:5 )
    Size
    		   Diameter of bin (m)
    3
      Floor space (m²)
    7
      Height of bin (m)
    2.73
      Height of elevator (m)
    3.46
    Weight (kg)
    1370
    Brower
    		  Amount of wind (m²/s)
    2.25
    Burner
    		  Amount of the maximum combustion ({/h)
    9.4
    Fuel
    		   Use fuel
    Kerosene
      Capacity of fuel tank ({)
    95
    Necessary power
    		  Electric power (kw)
    4.5 / 4.8 (50Hz /60Hz)
      Voltage (v)
    3-phase 200V
    Performance
    		  Capacity of input (t/h)
    9
      Capacity of exhaust (t/h)
    8 (High speed) / 4 (Standard)
      Per hour dryness efficiency (%/h)
    0.7 ~ 0.9 (Soybean:0.3)
    *Above specification may change due to Yamamoto's continuous development program.
