De-stoner, Polisher unit     Super Mill Zero      UMZ-03HA / 05A    UMZ-03HAT / 05AT

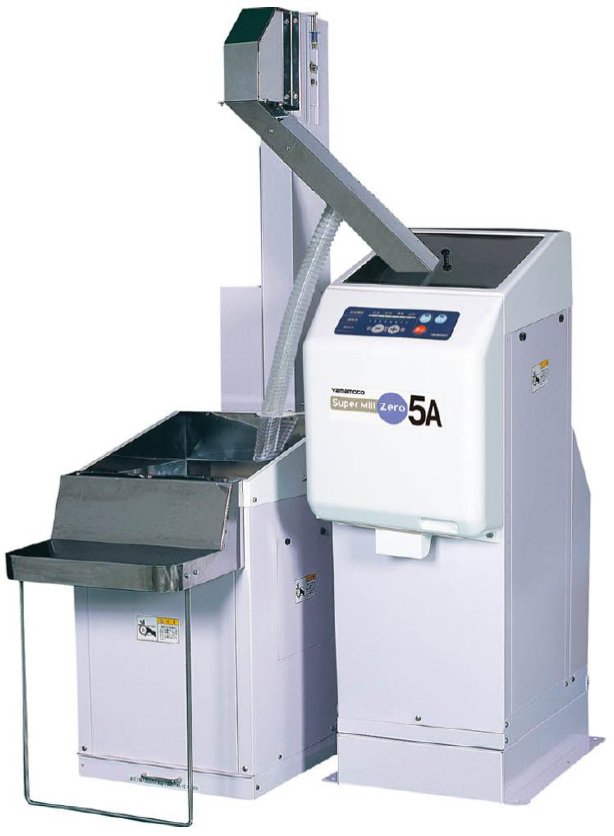

UMZ-05A

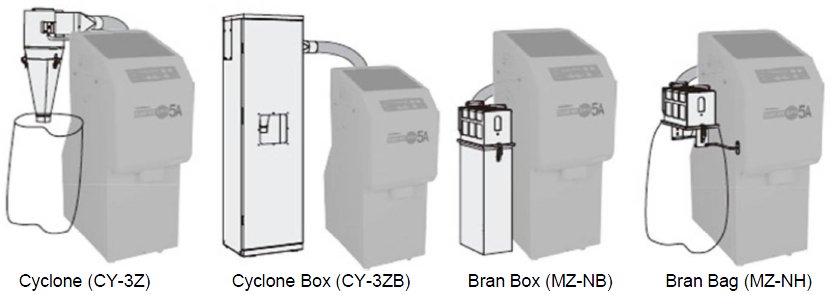

OPTIONS

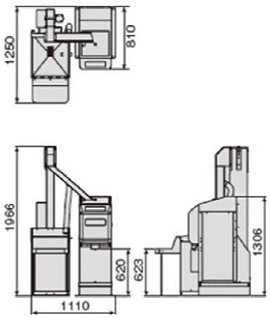

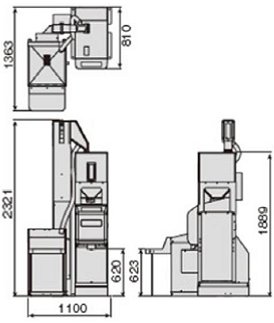

DIMENSIONS  UMZ-03HA, 05A UMZ-03HAT, 05AT

Specifications:  Model UMZ-03HA UMZ-05A UMZ-03HAT UMZ-05AT Capacity (kg/h) for short grain rice 120 -180 180 -300 120 -180 180 -300 Size Length (mm) 1,250 1,363 Width (mm) 1,100 Height (mm) 1,966 2,321 Net Weight (kg) 233 243 239 249 Bran removal method Suction Fan Outlet Height (mm) 620 Necessary Power Voltage (V) 3 phase 200 Rice Milling Machine (kW) 2.2 3.7 2.2 3.7 Suction Fan (kW) 0.1 Resistance motor (kW) 0.03 Flow adjustment motor (kW) 0.025 Heater (kW) 0.045 Bucket Elevator motor (kW) 0.09 De-stoner motor (kW) 0.2 Shutter motor (kW) 0.003 Total (kW) 2.693 4.193 2.693 4.193 Safety divice Thermal relay Other -- With 60kg tank

Above specification and dimensions may change due to Yamamoto's continuous development program.

We create future of agriculture
YAMAMOTO CO.,LTD.

---

---
