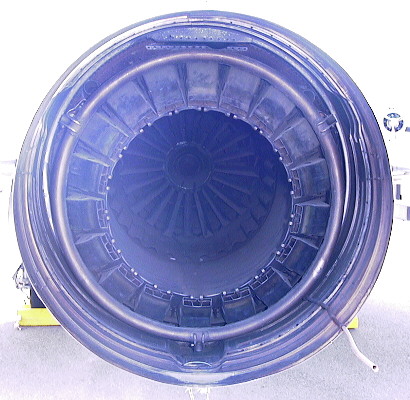

Tailpipe of MiG 21. Note the
simplicity of the nozzle control. The circular pipe around the
petals
moves forward to close up the orifice, while jet blast forces the
free hinged petals open against the tube.
